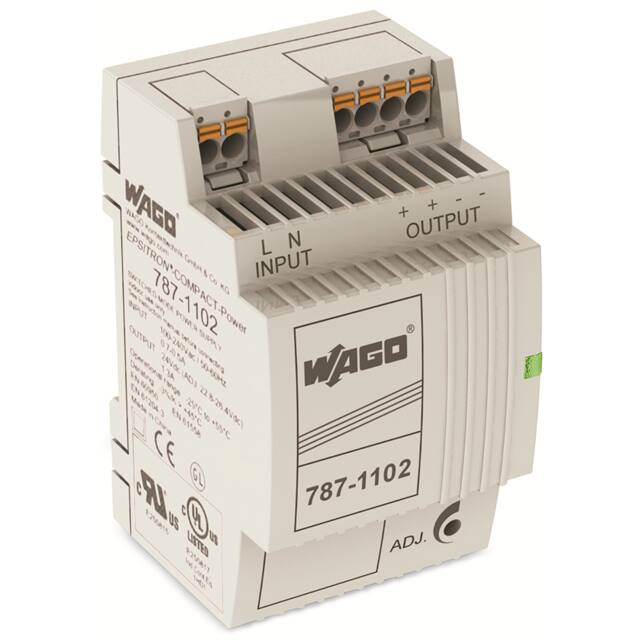

787-1102

Manufacturer :

WAGO

Product Category :

Type of electric connection :

Spring clamp connection

Voltage - Output 1 :

24V

Standard Number :

60950-1; UL 508

Size / Dimension :

2.17 L x 3.50 W x 2.32 H (55.0mm x 89.0mm x 59.0mm)

Degree of protection (IP) :

IP20

Nominal Input Voltage (AC) :

120 VAC, 240 VAC

Voltage - Output 2 :

-

Height :

59

Features :

Adjustable Output, IP20, PFC, Universal Input

Operating Temperature :

-13-140 °F

Efficiency :

82%

Input Type :

AC or DC

Package :

Box

Number of Outputs :

1

Voltage - Output 4 :

-

Depth :

89

Input Frequency :

44-66 Hz

Power (Watts) :

31W

Product Status :

Active

Power :

31 W

RoHS :

yes

Power Factor Correction :

yes

Rail mounting possible :

yes

Approvals :

UL508, UL60950

Modular version :

No

Minimum Load Required :

-

Mounting :

DIN Rail

Approval Agency :

cURus, UL

Series :

-

Suitable for safety functions :

No

Current - Output (Max) :

1.3A

Voltage - Isolation :

4.242 kV

Overload Protection :

yes

Output Current :

1.3 A

Width :

54

Voltage - Output 3 :

-

Applications :

Industrial, ITE (Commercial)

Voltage - Output 5 :

-

Manufacturer :

Wago

Voltage - Output 6 :

-

Voltage type of supply voltage :

AC/DC
