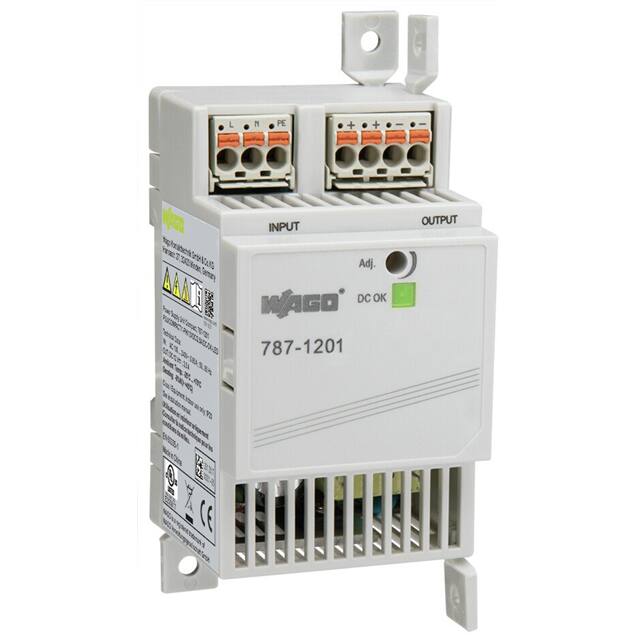

787-1201

Manufacturer :

WAGO

Product Category :

Input Type :

AC or DC

Applications :

Household Appliances, Industrial, ITE (Commercial)

Depth :

56

Size / Dimension :

2.07 L x 2.13 W x 3.54 H (52.5mm x 54.0mm x 90.0mm)

Operating Temperature :

-25°C ~ 70°C

Voltage - Output 2 :

-

Type of electric connection :

Spring clamp connection

Features :

Adjustable Output, IP20, PFC, Universal Input

Rail mounting possible :

yes

Efficiency :

88%

Modular version :

No

Voltage - Output 1 :

12V

Degree of protection (IP) :

IP20

Power (Watts) :

30W

Voltage - Output 6 :

-

Package :

Box

Minimum Load Required :

-

Voltage type of supply voltage :

AC/DC

Voltage - Isolation :

4.242 kV

Height :

90

Product Status :

Active

Approval Agency :

CE, EAC, UL

Voltage - Output 5 :

-

Suitable for safety functions :

No

Current - Output (Max) :

2.5A

Width :

54

Series :

-

Voltage - Output 3 :

-

Standard Number :

60335-1; UL 508

Voltage - Output 4 :

-

Number of Outputs :

1
