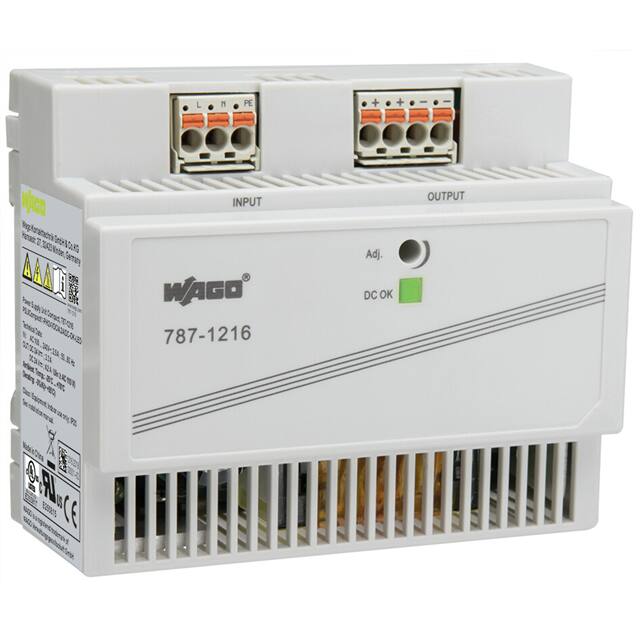

787-1216

Manufacturer :

WAGO

Product Category :

Product Status :

Active

Standard Number :

60335-1; 60950-1; 62368-1; UL 508

Dim :

(L x W x H) 56 x 108 x 90 mm

Depth :

89mm

Number of Outputs :

1

Voltage - Output 2 :

-

Operating Temperature :

-13-158 °F

Features :

Adjustable Output, IP20, PFC, Universal Input

Output voltage (max.) :

26V

Power Rating :

100W

Series :

787

Approval Agency :

cURus, EAC, UL

Efficiency :

90%

Voltage - Output 4 :

-

Input Type :

AC or DC

Max. output current :

4.2A

Type :

787-1216

Power Factor Correction :

yes

Mounting :

DIN Rail

Height :

90mm

Manufacturer part # :

787-1216

RoHS :

yes

Modular version :

No

Output Current :

4.2 A

Power (Watts) :

100W

Power :

100.8W

Voltage - Output 5 :

-

Size / Dimension :

2.07 L x 4.25 W x 3.54 H (52.5mm x 108.0mm x 90.0mm)

Applications :

Household Appliances, Industrial, ITE (Commercial)

Voltage - Output 1 :

24V

Current - Output (Max) :

4.2A

Tolerance :

+/-10%

Package :

Box

Voltage - Output 6 :

-

Voltage - Output 3 :

-

Content :

1pc(s)

Output current (max.) - rounded :

4.2A

Suitable for safety functions :

No

Nominal Input Voltage (AC) :

120 VAC, 240 VAC

Min. input voltage :

85V AC

Width :

108mm

Voltage type of supply voltage :

AC/DC

Degree of protection (IP) :

IP20

Capacitance :

3300pF

Manufacturer :

Wago

Output voltage (nominal) :

24V

Type of electric connection :

Spring clamp connection

Input voltage (max.) :

264V AC

Input Voltage :

85 → 264 V ac, 125 → 375 V dc

No. of outputs :

1x

Approvals :

UL508, UL60950

Length :

56mm

Input Frequency :

47-63 Hz

Voltage - Isolation :

4.242 kV

Rail mounting possible :

yes

Overload Protection :

yes

Weight :

415g

Minimum Load Required :

-

Connections :

Wago 740

Output voltage (min.) :

22V

Output Voltage :

24V dc
