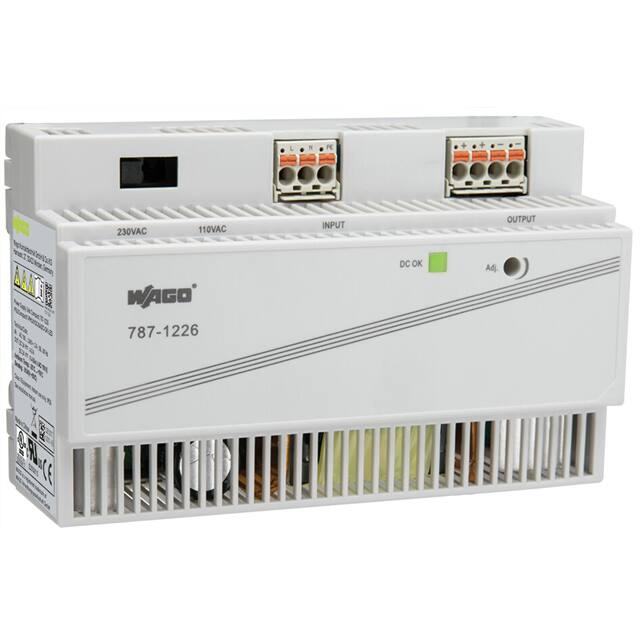

787-1226

Manufacturer :

WAGO

Product Category :

Input Frequency :

47-63 Hz

Output Voltage :

24V dc

Overload Protection :

yes

Degree of protection (IP) :

IP20

Manufacturer part # :

787-1226

Height :

90mm

Output current (max.) - rounded :

6A

Voltage - Output 6 :

-

Width :

144mm

Weight :

510g

Type :

787-1226

Features :

Adjustable Output, IP20, PFC, Universal Input

Voltage - Output 4 :

-

Standard Number :

60950-1; 61010-1; 62368-1; UL 508

Voltage type of supply voltage :

DC

Product Status :

Active

Output voltage (min.) :

22V

Output Current :

6 A

Efficiency :

90%

Output voltage (nominal) :

24V

No. of outputs :

1x

Power (Watts) :

150W

Package :

Box

RoHS :

yes

Dim :

(L x W x H) 56 x 144 x 90 mm

Power Factor Correction :

yes

Input Type :

AC or DC

Applications :

Industrial, ITE (Commercial), Laboratory

Input Voltage :

100 → 120 V ac, 200 → 240 V ac, 250 → 375 V dc

Modular version :

No

Voltage - Isolation :

4.242 kV

Approvals :

UL508, UL60950

Voltage - Output 3 :

-

Size / Dimension :

6.07 L x 5.67 W x 3.54 H (154.1mm x 144.0mm x 90.0mm)

Depth :

89mm

Approval Agency :

cURus, EAC, UL

Power :

144W

Type of electric connection :

Spring clamp connection

Voltage - Output 1 :

24V

Voltage - Output 2 :

-

Minimum Load Required :

-

Number of Outputs :

1

Nominal Input Voltage (AC) :

120 VAC, 240 VAC

Rail mounting possible :

yes

Voltage - Output 5 :

-

Operating Temperature :

-13-158 °F

Connections :

Wago 740

Content :

1pc(s)

Series :

787

Mounting :

DIN Rail

Length :

56mm

Current - Output (Max) :

6A

Power Rating :

150W

Output voltage (max.) :

26V

Manufacturer :

Wago

Max. output current :

6A

Suitable for safety functions :

No
