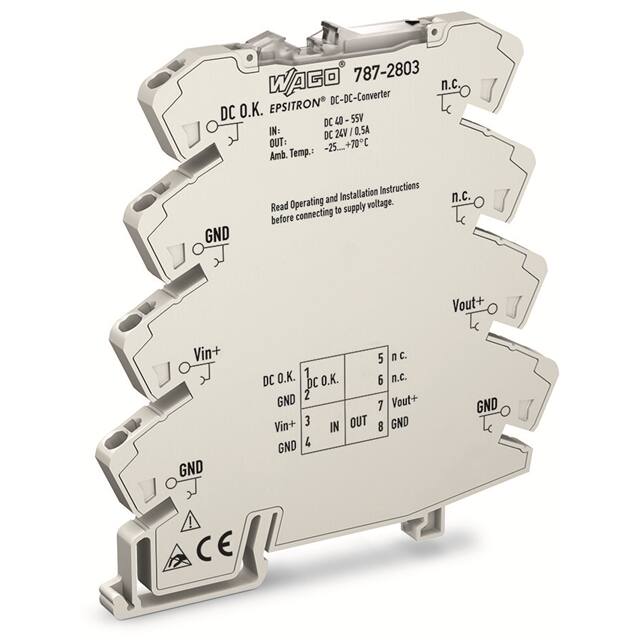

787-2803

Manufacturer :

WAGO

Product Category :

Features :

Adjustable Output, IP20

Output Current :

0.5 A

Modular version :

yes

Voltage - Output 4 :

-

Number of Outputs :

1

Product Status :

Active

Type of electric connection :

Spring clamp connection

Power :

12 W

Standard Number :

60950-1; 61010-1

Current - Output (Max) :

500mA

Approvals :

UL

Mounting :

DIN Rail

Voltage - Output 1 :

24V

Height :

96

Voltage - Output 5 :

-

Manufacturer :

Wago

Suitable for safety functions :

No

Overload Protection :

No

Degree of protection (IP) :

IP20

Package :

Bag

Applications :

ITE (Commercial), Laboratory

Voltage type of supply voltage :

DC

Approval Agency :

CE, EAC, UL

RoHS :

yes

Operating Temperature :

-13-158 °F

Power (Watts) :

12W

Efficiency :

91%

Voltage - Output 3 :

-

Width :

6

Depth :

94

Minimum Load Required :

-

Size / Dimension :

3.85 L x 0.24 W x 3.70 H (97.8mm x 6.0mm x 94.0mm)

Series :

-

Input Type :

DC

Voltage - Output 2 :

-

Input Current :

0.34 A

Nominal Input Voltage (DC) :

48 VDC

Rail mounting possible :

yes

Voltage - Output 6 :

-

Power Factor Correction :

No
