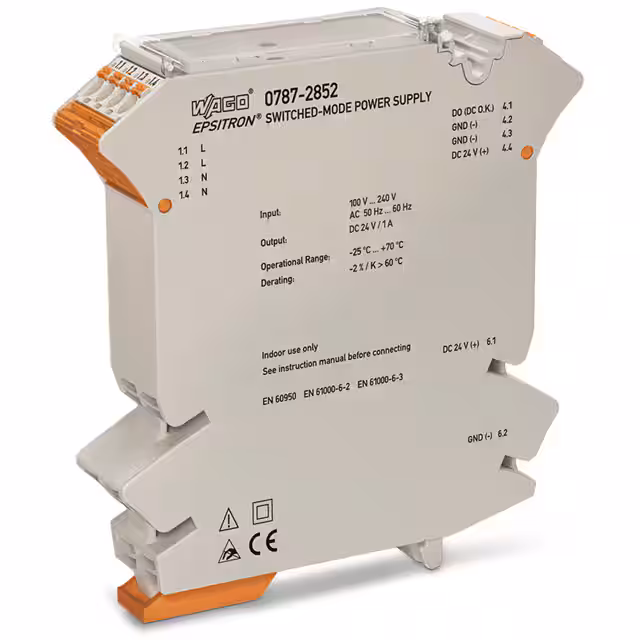

787-2852

Manufacturer :

WAGO

Product Category :

Manufacturer :

Wago

Product Status :

Active

Modular version :

No

Operating Temperature :

-4-158 °F

Package Length :

105

Output Current :

1 A

Approval Agency :

EAC

Input Frequency :

47-63 Hz

Applications :

Industrial, ITE (Commercial)

Automotive :

No

Nominal Input Voltage (AC) :

120 VAC, 240 VAC

Approvals :

UL508, UL60950

Package Height :

107

Degree of protection (IP) :

IP20

Number of Outputs :

1

Current - Output (Max) :

1A

EU RoHS :

Compliant

Mounting :

DIN Rail

Type of electric connection :

Spring clamp connection

Standard Number :

60950-1; UL 508

Features :

Adjustable Output, IP20, PFC, Universal Input

Voltage - Output 2 :

-

RoHS :

yes

Size / Dimension :

4.12 L x 0.89 W x 4.21 H (104.7mm x 22.5mm x 107.0mm)

Depth :

118

Voltage - Output 3 :

-

Package Width :

22.5

Voltage - Output 5 :

-

Efficiency :

86%

Height :

110

Power Factor Correction :

yes

Power :

24 W

Packaging :

Box

Voltage - Output 6 :

-

Overload Protection :

yes

Minimum Load Required :

-

HTS :

8504.40.95.10

Voltage - Output 1 :

24V

Power (Watts) :

24W

Suitable for safety functions :

No

Width :

22.5

Rail mounting possible :

yes

Voltage - Isolation :

4.242 kV

Voltage type of supply voltage :

AC/DC

Voltage - Output 4 :

-

Input Type :

AC or DC

PPAP :

No
