787-712

Manufacturer :

WAGO

Product Category :

Voltage - Output 2 :

-

Minimum Load Required :

-

Voltage - Output 6 :

-

Output Voltage :

24V dc

Type :

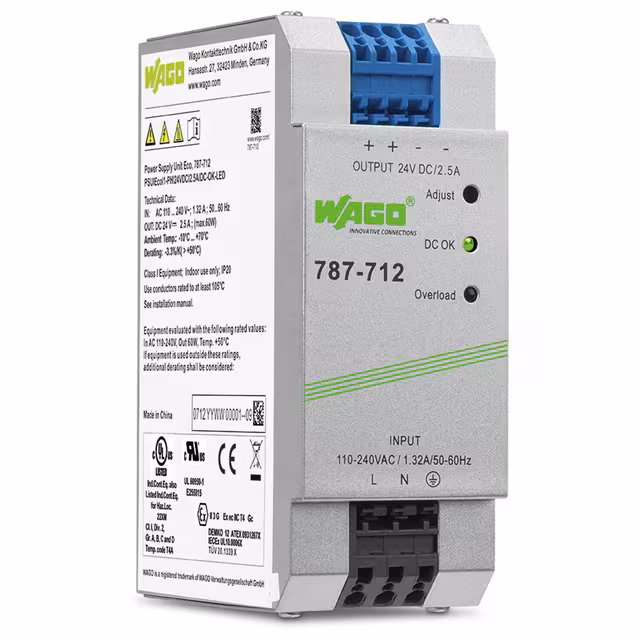

EPSITRON® ECO POWER 787-712

Product Status :

Active

Efficiency :

86%

Content :

1pc(s)

Features :

IP20

Power Rating :

60W

Weight :

470g

Connection :

Screw Terminal

Nominal Input Voltage (AC) :

120 VAC, 240 VAC

Output current (max.) - rounded :

2.5A

Voltage - Isolation :

4.242 kV

Power :

60 W

Output Current :

2.5 A

Voltage - Output 5 :

-

Approvals :

CE, UL

Applications :

Hazardous Locations, ITE (Commercial)

Standard Number :

60950-1; 62368-1; ATEX; IECEx

Manufacturer :

Wago

No. of outputs :

1x

Reach Compliance Code :

Unknown

Current - Output (Max) :

2.5A

Input voltage (max.) :

550V AC

Output voltage (min.) :

22.8V DC

Width :

50mm

Output current (details) :

2.5A

Number of Outputs :

1

Voltage - Output 3 :

-

Power Factor Correction :

yes

Voltage - Output 4 :

-

Output voltage (nominal) :

24V dc

Power (Watts) :

60W

Input Type :

AC or DC

Input Frequency :

47-63 Hz

Size / Dimension :

5.35 L x 1.97 W x 3.62 H (136.0mm x 50.0mm x 92.0mm)

Voltage - Output 1 :

24V

Depth :

136mm

Manufacturer part # :

787-712

Series :

787

Dim :

(W x H x D) 50 x 92 x 136 mm

Connections :

Terminal

RoHS :

yes

Min. input voltage :

340V AC

Overload Protection :

yes

Height :

92mm

Input Voltage :

85 → 264 V ac, 90 → 373 V dc

Max. output current :

2.5A

Approval Agency :

CCC, CE, cURus, UL

Package :

Box

Operating Temperature :

14-158 °F

Mounting :

DIN Rail

Output voltage (max.) :

28.8V DC
