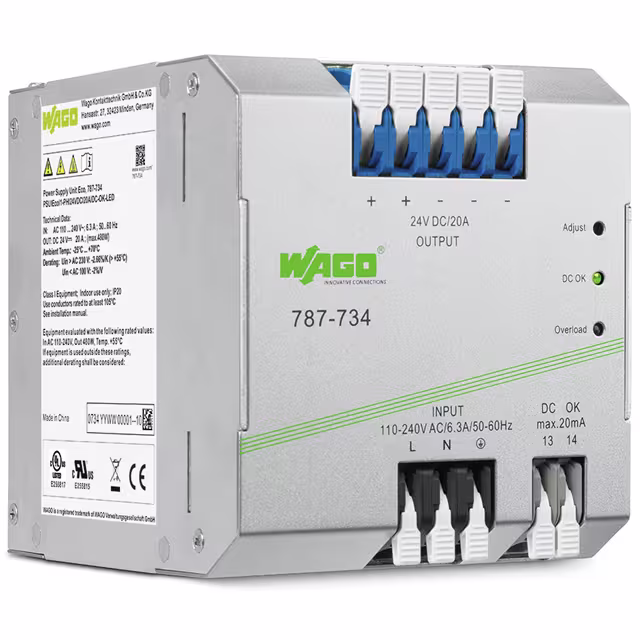

787-734

Manufacturer :

WAGO

Product Category :

Dim :

(W x H x D) 115 x 136 x 144 mm

Efficiency :

90%

Depth :

144mm

Input Type :

AC or DC

Size / Dimension :

5.67 L x 4.53 W x 5.35 H (144.0mm x 115.0mm x 136.0mm)

Output voltage (min.) :

22V DC

Voltage - Output 5 :

-

Manufacturer part # :

787-734

Minimum Load Required :

-

Power (Watts) :

480W

Input voltage (max.) :

264V AC

Rail mounting possible :

yes

No. of outputs :

1x

Voltage - Output 3 :

-

Package :

Box

Connection :

Spring-loaded terminal

Type of electric connection :

Spring clamp connection

Voltage type of supply voltage :

AC/DC

Weight :

2400g

Power :

480W

Product Status :

Active

Approval Agency :

cURus

Current - Output (Max) :

20A

Number of Outputs :

1

Voltage - Output 6 :

-

Type :

EPSITRON® ECO POWER 787-734

Series :

-

Voltage - Output 4 :

-

Connections :

Terminal

Output current (max.) - rounded :

20A

Modular version :

No

Content :

1pc(s)

Height :

136mm

Voltage - Isolation :

4.242 kV

Standard Number :

60950-1

Width :

115mm

Suitable for safety functions :

No

Voltage - Output 1 :

24V

Operating Temperature :

-25°C ~ 70°C

Output voltage (nominal) :

24V dc

Voltage - Output 2 :

-

Applications :

ITE (Commercial)

Output voltage (max.) :

28V DC

Degree of protection (IP) :

IP20

Min. input voltage :

85V AC

Features :

Adjustable Output, IP20, PFC, Universal Input

Max. output current :

20A

Output current (details) :

20A
