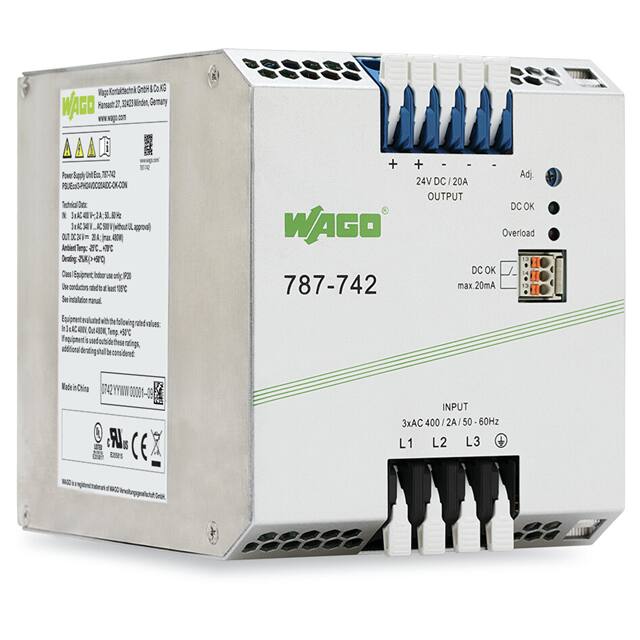

787-742

Manufacturer :

WAGO

Product Category :

Packaging :

Box

Minimum Load Required :

-

Efficiency :

90%

Power :

480W

HTS :

8504.40.95.10

Length :

151mm

Number of Outputs :

1

Dim :

(L x W x H) 151 x 110 x 130 mm

Voltage - Output 5 :

-

Automotive :

No

Voltage - Output 1 :

24V

Size / Dimension :

5.94 L x 4.33 W x 5.12 H (151.0mm x 110.0mm x 130.0mm)

Manufacturer part # :

787-742

Voltage - Output 6 :

-

Product Status :

Active

Max. output current :

20A

Type of electric connection :

Spring clamp connection

Height :

130mm

Current - Output (Max) :

20A

Output voltage (min.) :

22V

Overload Protection :

yes

Operating Temperature :

-13-158 °F

Input Voltage :

360 → 575 V ac, 500 → 650 V dc

Applications :

ITE (Commercial)

Approval Agency :

cURus, UL

Package Width :

110

Connections :

Terminal

Series :

787

Depth :

151

Output voltage (nominal) :

24V

No. of outputs :

1x

Weight :

1930g

Output voltage (max.) :

28V

Manufacturer :

Wago

Package Length :

151

Mounting :

DIN Rail

Type :

787-742

Power (Watts) :

480W

Rail mounting possible :

yes

Standard Number :

60950-1; UL 508

Input Frequency :

47-63 Hz

Input Type :

AC or DC

EU RoHS :

Compliant

Voltage - Output 3 :

-

Suitable for safety functions :

No

Output Current :

20 A

Width :

110mm

Voltage - Output 2 :

-

Modular version :

No

Voltage - Isolation :

4.242 kV

Min. input voltage :

325V AC

Features :

Adjustable Output, IP20, PFC, Universal Input

Nominal Input Voltage (AC) :

480 VAC

Content :

1pc(s)

Power Factor Correction :

yes

Output current (max.) - rounded :

20A

Voltage - Output 4 :

-

Package :

Box

Output Voltage :

24V dc

Degree of protection (IP) :

IP20

Approvals :

UL508, UL60950

Input voltage (max.) :

575V AC

Voltage type of supply voltage :

AC/DC

Power Rating :

480W

PPAP :

No

Package Height :

130

RoHS :

yes
