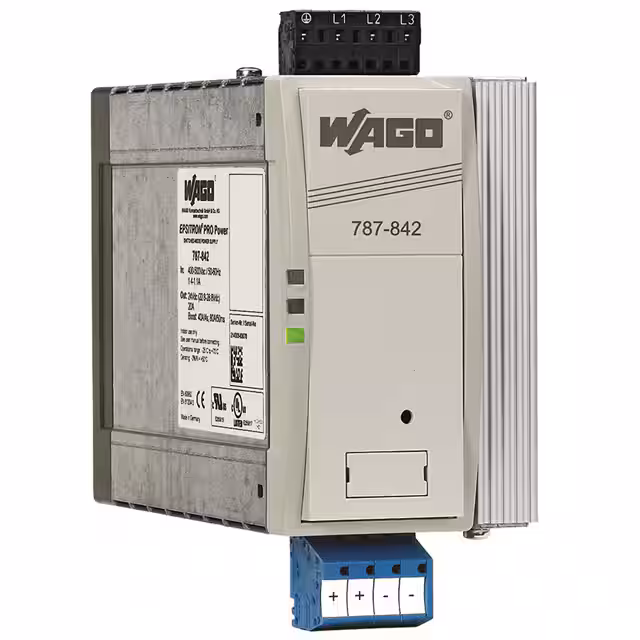

787-842

Manufacturer :

WAGO

Product Category :

RoHS :

yes

Voltage - Isolation :

4.242 kV

Max. output current :

20A

Output voltage (max.) :

28.8V DC

Package :

Box

Manufacturer part # :

787-842

Power (Watts) :

480W

Nominal Input Voltage (AC) :

480 VAC

Input Type :

AC or DC

Input voltage (max.) :

550V AC

Output current (max.) - rounded :

20A

Output current (details) :

20A

No. of outputs :

1x

Output voltage (nominal) :

24V dc

Connection :

Screw Terminal

Min. input voltage :

340V AC

Number of Outputs :

1

Current - Output (Max) :

20A

Output Current :

20 A

Output voltage (min.) :

22.8V DC

Voltage - Output 3 :

-

Product Status :

Active

Voltage - Output 4 :

-

Mounting :

DIN Rail

Approvals :

UL508, UL60950

Minimum Load Required :

-

Type :

EPSITRON® PRO POWER 787-842

Depth :

179mm

Width :

77mm

Weight :

1300g

Power Factor Correction :

yes

Approval Agency :

cURus, EAC, UL

Content :

1pc(s)

Input Frequency :

50-60 Hz

Dim :

(W x H x D) 77 x 171 x 179 mm

Efficiency :

92.9%

Voltage - Output 1 :

24V

Applications :

Industrial, ITE (Commercial)

Voltage - Output 5 :

-

Power :

480 W

Features :

Adjustable Output, IP20, PFC, Universal Input

Operating Temperature :

-13-158 °F

Standard Number :

60950-1; UL 508

Overload Protection :

yes

Series :

-

Voltage - Output 6 :

-

Height :

171mm

Voltage - Output 2 :

-

Manufacturer :

Wago

Size / Dimension :

7.05 L x 3.03 W x 6.73 H (179.0mm x 77.0mm x 171.0mm)
