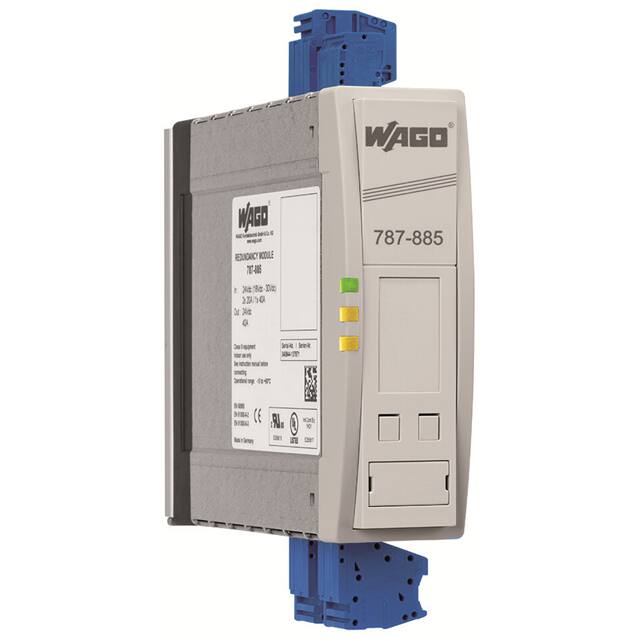

787-885

Manufacturer :

WAGO

Product Category :

Degree of protection (IP) :

IP20

Output current (max.) - rounded :

40A

Connection :

Spring-loaded terminal

Number of Inputs :

2

Approvals :

CE,UL

Dim :

(W x H x D) 40 x 163 x 181 mm

Rail mounting possible :

yes

Suitable for safety functions :

No

Manufacturer :

Wago

Output current (details) :

40A

Voltage type of supply voltage :

DC

Max Output Current :

40 Amps

Min. input voltage :

18V DC

Accessory Type :

Redundancy Module

Manufacturer part # :

787-885

Nominal Input Voltage :

24 Volts

Max. output current :

40A

Type :

EPSITRON® 787-885

Depth :

181mm

Output voltage (min.) :

24V dc

For Use With/Related Products :

Power Supplies

Package :

Box

Height :

163mm

Mounting :

DIN Rail

Type of electric connection :

Spring clamp connection

Width :

40mm

Output voltage (max.) :

24V dc

Inputs :

2 x 20A

Input Voltage Range :

18~30 VDC

Input voltage (max.) :

30V DC

Weight :

800g

Modular version :

No

No. of outputs :

1x

Series :

-

Terminal Type :

Spring Clamp

Product Status :

Active

RoHS :

yes
