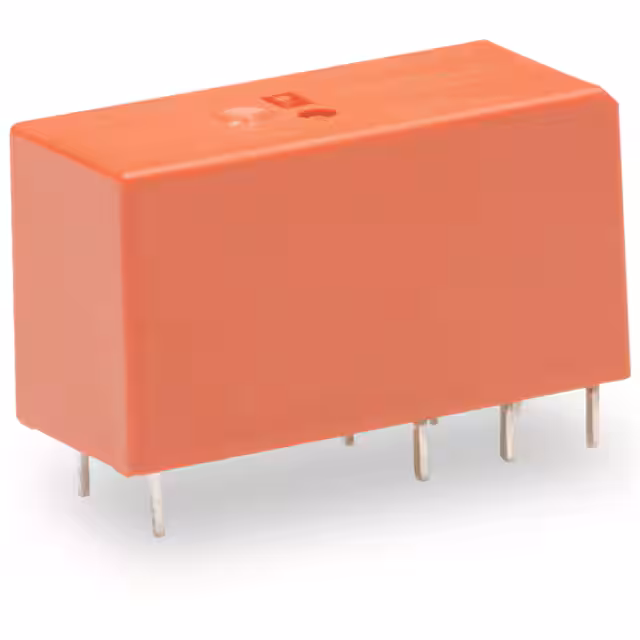

788-156

Manufacturer :

WAGO

Product Category :

Power Relays, Over 2 Amps

Terminal Type :

Plug In

Contact Form :

DPDT (2 Form C)

Manufacturer :

Wago

Contact Configuration :

DPDT

Switching Voltage :

250VAC - Max

Mounting Type :

Through Hole

Material of contact surface :

Silver

Application :

Electronic To Electromechanical

Height :

15mm

Termination Style :

PC Pin

Operate Time :

8 ms

Rated control supply voltage at DC :

24 - 24

Nominal current :

8

Voltage type for actuating :

DC

Enclosure :

Plastic

RoHS :

yes

Operating Temperature :

-40°C ~ 85°C

Width :

12.7

Type of electric connection :

Plug-in connection

Number of contacts as normally open contact :

0

Number of Poles :

2

Mounting :

Plug In

Coil Voltage :

24VDC

Number of contacts as change-over contact :

2

Termination :

Socket

Degree of protection (IP) :

IP20

Series :

788

Contacts :

DPDT

Product Status :

Active

Switching Current :

2 x 8A

With detachable clamps :

No

Number of contacts as normally closed contact :

0

Standards Met :

UL 508

Package :

Box

Relay Type :

GENERAL PURPOSE

Release Time :

6 ms

Depth :

12.7mm

Contact Rating (Current) :

8 A

Length :

29mm

Contact Material :

Silver Nickel (AgNi)
