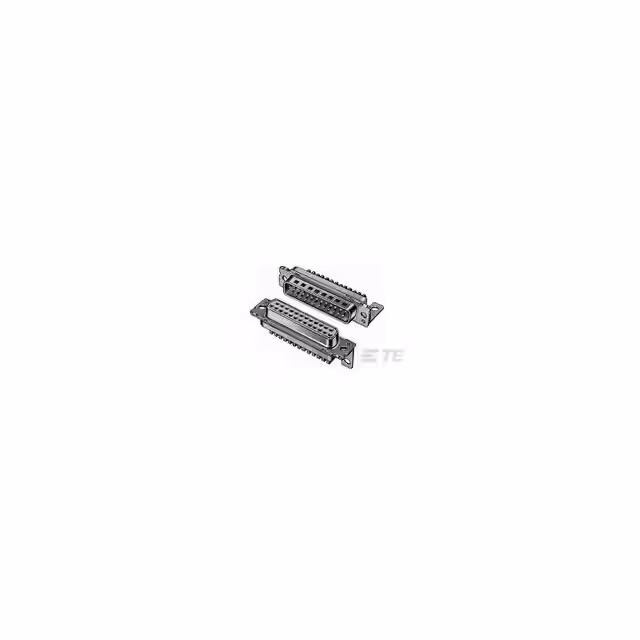

8-1393480-4

Manufacturer :

TE Connectivity

Product Category :

Unclassified

Brand :

TE Connectivity / AMP

UL Flammability Code :

94V-0

MIL Conformance :

No

Contact Plating :

Gold Over Nickel

Product Height (mm) :

12.93 mm

Product Category :

D-Sub Standard Connectors

Connector Type :

D SUBMINIATURE CONNECTOR

Dielectric Withstanding Voltage :

1000VAC V

Housing Material :

Thermoplastic

Number of Contacts :

37 POS

Filter Feature :

No

Contact Pattern :

STAGGERED

Type :

D-Subminiature

Body/Shell Style :

Socket

PCB Contact Pattern :

STAGGERED

Mounting Type :

BOARD

ECCN Code :

EAR99

Number of Positions :

37 Position

Contact Gender :

FEMALE

Current Rating :

2.2/Contact A

Shell Material :

Steel

Empty Shell :

No

Insulator Color :

Gray

IEC Conformance :

No

Package :

Box

DIN Conformance :

No

Plating Thickness :

30u inch

Shell Plating :

Tin

Shell Finish :

Tin

Number of Ports :

1 Port

Body Breadth :

0.509 inch

Rad Hardened :

No

Number Of PCB Rows :

2

HTS Code :

8536.69.40.30

Contact Material :

Phosphor Bronze

Product Length (mm) :

69.7 mm

Reliability :

COMMERCIAL

Number of Contact Rows :

2

RoHS :

Details

Total Number of Contacts :

37

Product Type :

D-Sub Connectors - Standard Density

Body Depth :

0.591 inch

Contact Pitch (mm) :

2.76 mm

Option :

GENERAL PURPOSE

Factory Lead Time :

20 Weeks, 5 Days

Manufacturer :

TE Connectivity

Subcategory :

D-Sub Connectors

Series :

HD-20 Type B - Solder Terminal

Contact Style :

RND PIN-SKT

Mounting Style :

Through Hole

Termination Method :

Solder

Pbfree Code :

yes

Number of Rows :

2 Row

Termination Style :

Through Hole

Tradename :

AMPLIMITE

Reference Standard :

UL

Rated Current (Signal) :

2.2 A

Reach Compliance Code :

Compliant

Termination Type :

Solder

Terminal Pitch :

2.7686 mm

PCB Contact Row Spacing :

2.54 mm

Terminal Length :

0.126 inch

Number of Terminals :

37

Mating Contact Row Spacing :

0.112 inch

Operating Temp Range :

-55C to 125C

Mating Contact Pitch :

0.109 inch

Product Depth (mm) :

21.3 mm

Mixed Contacts :

No

Shell Size :

4 (C)

Body Orientation :

RIGHT ANGLE

Insulation Resistance :

5000000000 Ω

Additional Feature :

AMPLIMITE

Plug / Receptacle :

SKT

Product Status :

Active
