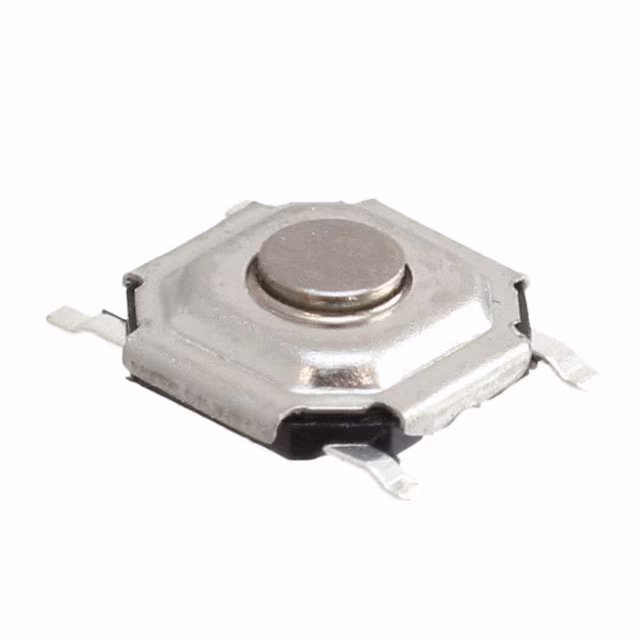

8-1437565-1

Manufacturer :

TE Connectivity ALCOSWITCH Switches

Product Category :

Contact Material :

Stainless Steel

Body Length or Diameter :

5.2 mm

Manufacturer :

TE Connectivity

Factory Lead Time :

9 Weeks

Actuator Style :

Round Button

Reach Compliance Code :

Compliant

Lamp Type :

-

Outline :

5.00mm x 5.00mm

Actuator :

Round

Illumination Type, Color :

--

Contact Current(AC)-Max :

0.02 A

Mechanical Life :

500,000 Cycles

Termination Style :

Gull wing

Switch Type :

PUSHBUTTON SWITCH

Illumination :

Non-Illuminated

Voltage Rating (VDC) :

24(V)

Contact Plating :

Silver Clad

Length :

5 mm

Packaging :

Tape and Reel (TR)

Contact Voltage(DC)-Max :

24 V

Termination Type :

Solder

Mounting Feature :

SURFACE MOUNT-STRAIGHT

Operating Temperature :

-20 to 85 °C

Illumination Type :

Not Required

Mounting Type :

Surface Mount

Subcategory :

Switches

Circuit :

SPST-NO

Height :

1.5 mm

Packing Method :

Tape and Reel

Additional Feature :

LOW PROFILE

Mounting Style :

Surface Mount

Pole Throw Configuration :

SPST

Actuator Height off PCB, Vertical :

1.50mm

Actuator Material :

Aluminum Copper Alloy

Width :

5 mm

Features :

--

Actuator Orientation :

Top Actuated

Ingress Protection :

--

Switch Travel :

0.25mm

Package :

Tape and Reel (TR);Cut Tape (CT);

Current Rating :

50 mA

HTS Code :

8536.50.90.31

Product Status :

Active

Body Height :

0.8 mm

Product Type :

Tactile Switches

Body Breadth :

5.2 mm

Color :

White

Operating Temp Range :

-20C to 85C

Operating Force :

260gf

Base Product Number :

1437565

Operating Force-Max :

3.04 N

Power Rating :

-

Illumination Voltage (Nominal) :

--

Mounting :

Surface Mount

IP Rating :

-

Product Category :

Tactile Switches

Illumination Color :

-

Contact Current(DC)-Max :

0.05 A

Actuator Length, Right Angle :

--

Contact Rating @ Voltage :

0.02A @ 15VDC

Terminal Type :

Gull wing

Switch Action :

Momentary

Current Rating (Max) :

0.05(A)

Brand Name :

Alcoswitch

Surface Mount :

No

Body Orientation :

Straight

Actuator Type :

Standard

Brand :

TE Connectivity / PandB

Electrical Life :

500000 Cycle(s)

Switch Function Configuration :

OFF ON

RoHS :

Details

ECCN Code :

EAR99

Contact Form :

SPST

Series :

FSMCT

Switch Function :

Off-Mom
