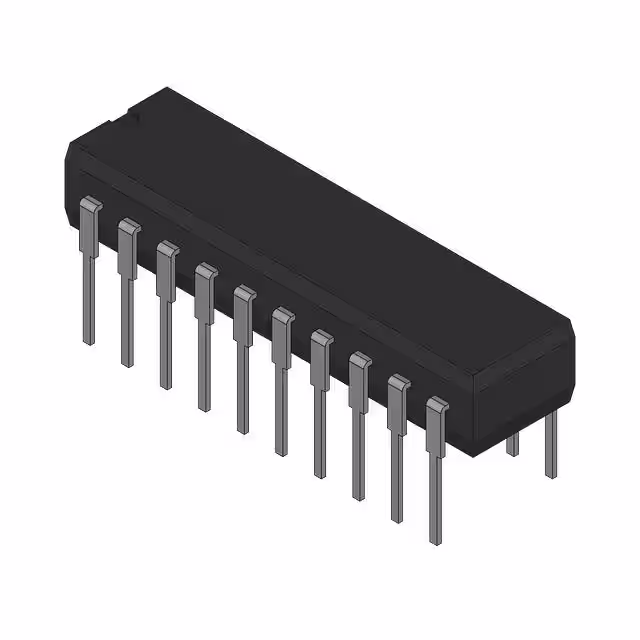

8103607RA

Manufacturer :

Texas Instruments

Product Category :

PLDs (Programmable Logic Device)

Temperature Grade :

Military

Architecture :

PAL-TYPE

Width :

6.92 mm

Frequency :

25 MHz

Factory Lead Time :

1 Week

Surface Mount :

No

RoHS :

Compliant

Number of Pins :

20

Pin Count :

20

Output Function :

COMBINATORIAL

Number of Product Terms :

64

Thickness :

4.57 mm

Propagation Delay :

30 ns

Number of Outputs :

8

Length :

24.2 mm

Min Operating Temperature :

-55 °C

JESD-30 Code :

R-GDIP-T20

Lead Free :

Contains Lead

Product Status :

Active

Qualification Status :

Qualified

Packing Method :

Tube

Mount :

Through Hole

Lifecycle Status :

Production (Last Updated: 1 day ago)

Package Shape :

RECTANGULAR

Packaging :

Rail/Tube

Terminal Pitch :

2.54 mm

JTAG BST :

No

Seated Height-Max :

5.08 mm

Contact Plating :

Lead, Tin

Screening Level :

MIL-STD-883

Manufacturer :

Texas

Package :

Tube

Reach Compliance Code :

not_compliant

Height :

5.08 mm

Power Supplies :

5 V

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

In-System Programmable :

No

ECCN Code :

3A001.A.2.C

Max Supply Voltage :

5.5 V

Operating Supply Voltage :

5 V

Terminal Position :

Dual

Number of Dedicated Inputs :

10

Subcategory :

Programmable Logic Devices

Max Operating Temperature :

125 °C

Series :

*

HTS Code :

8542.39.00.01

Programmable Logic Type :

OT PLD

Terminal Form :

THROUGH-HOLE

Number of I/O Lines :

6

Technology :

TTL

Organization :

10 DEDICATED INPUTS, 6 I/O

Min Supply Voltage :

4.5 V

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Brand Name :

Texas

Number of Inputs :

16

Turn-On Delay Time :

30 ns

Number of Terminals :

20
