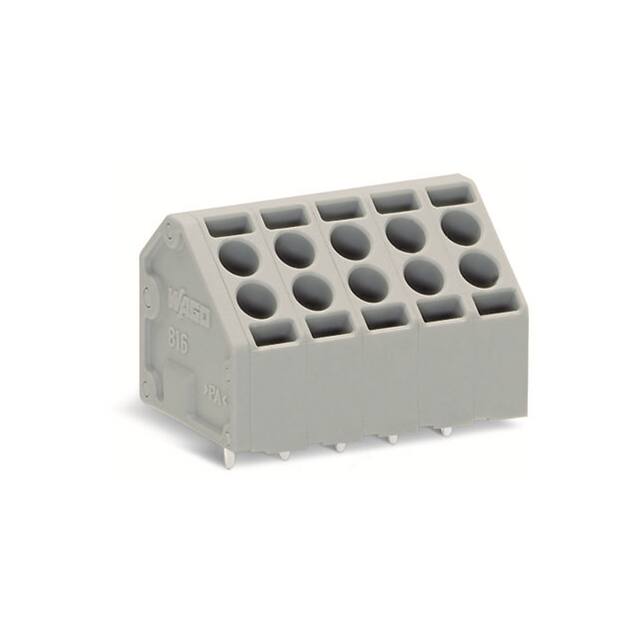

816-105

Manufacturer :

WAGO

Product Category :

Wire to Board

Positions Per Level :

5

Packaging type :

Other

Series :

-

Connectable conductor cross section fine-strand with cable end sleeve :

0.2 - 1

Rated current In :

14

HTS :

8536.90.40.00

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Over voltage category :

III

PPAP :

No

ECCN (US) :

EAR99

Voltage :

300 V

Color :

Gray

Torque - Screw :

-

Manufacturer :

Wago

Features :

-

Clamp Material - Plating :

Steel - Nickel Plated

Contact Material - Plating :

Copper Alloy - Tin Plated

Package :

Box

Product Status :

Active

Number of Levels :

1

Screw Thread :

-

Connection Type :

Spring Clamp

EU RoHS :

Compliant

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 1.5

Type of fastening :

Solder

Connectable conductor cross section multi-wired :

0.2 - 1.5

Number of Poles :

5

Pitch :

0.197 (5.00mm)

Operating Temperature :

-60°C ~ 105°C

Composition :

Polyamide

Connectable conductor cross section solid-core :

0.2 - 1.5

Automotive :

No

Mating Orientation :

45° (135°) Angle with Board

Wire Gauge :

16-24 AWG

RoHS :

yes

Mounting Type :

PCB Mount

Inflammability class of insulation material according to with UL94 :

V0

Housing Material :

Polyamide (PA66), Nylon 6/6

Rated surge voltage :

4

Pollution degree :

3

Temperature Range :

-76 to 221 Degrees F

Approvals :

UR;CSA

Current :

10 A

Screw Material - Plating :

-

Height :

16.6

Pin Length :

3.5 MilliMeters
