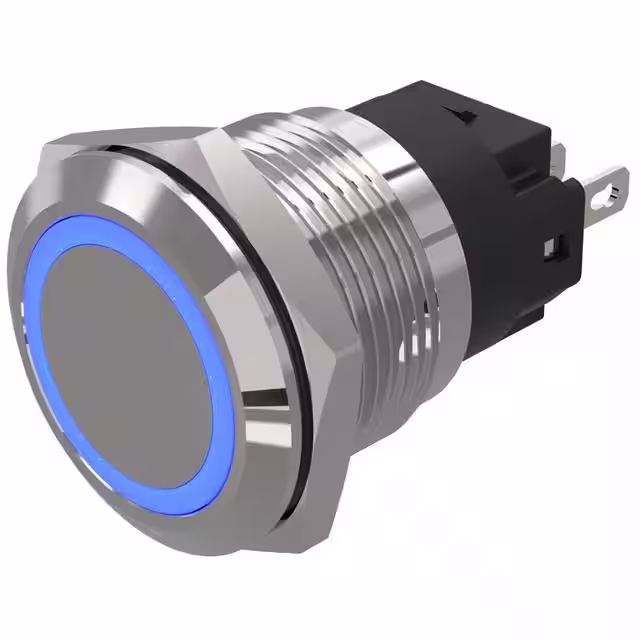

82-5151.0123

Manufacturer :

EAO

Product Category :

Color :

Silver

Mounting Style :

Panel Mount

Ingress Protection :

IP65, IP67

Colour front ring :

Natural colour

Type of lens :

Flat

Product :

Standard Switches

Wavelength - Peak :

-

Maximum Operating Temperature :

+ 70 C

Housing Material :

Stainless Steel

Colour lens :

Blue

Rated operating voltage Ue :

12 - 12

Lamp Color :

Blue

Lens Color :

-

Panel Cutout Shape :

Round

Lamp Type :

LED

Manufacturer :

EAO

Illumination Color :

Blue

Series :

-

Features :

-

Product Type :

Pushbutton Switches

Type of electric connection :

Soldering flag connection

Voltage Rating :

12V AC/DC

Subcategory :

Switches

Current Rating :

7 mA

Construction type lens :

Round

Current :

7mA

Product Status :

Active

IP Rating :

IP65, IP67

Operating Voltage :

12V

Actuator Material :

Stainless Steel

Lens Size :

22.00mm Dia

Termination Type :

Solder Tab

Viewing Angle :

-

Tradename :

Series 82

Material front ring :

Metal

Ratings :

AC/DC

Diameter :

22 mm

Number of indicator lights :

1

Material :

Stainless Steel

Millicandela Rating :

-

RoHS :

Details

Termination Style :

Quick Connect - 0.110" (2.8mm)

Type :

LED

Contact Plating :

Silver

Voltage type :

AC/DC

Degree of protection (IP) :

IP65/IP67

Packaging :

Tray

Lens Transparency :

-

Minimum Operating Temperature :

- 30 C

Package :

Tray

Brand :

EAO

Mounting Hole Dia :

19mm

Product Category :

Pushbutton Switches

With front ring :

yes

Luminous Intensity :

-

Panel Cutout Dimensions :

0.75" (19.00mm)

With light source :

yes

Type of lamp socket :

LED

Voltage :

12V

Actuator :

Round

Lens Style :

Round with Flat Top
