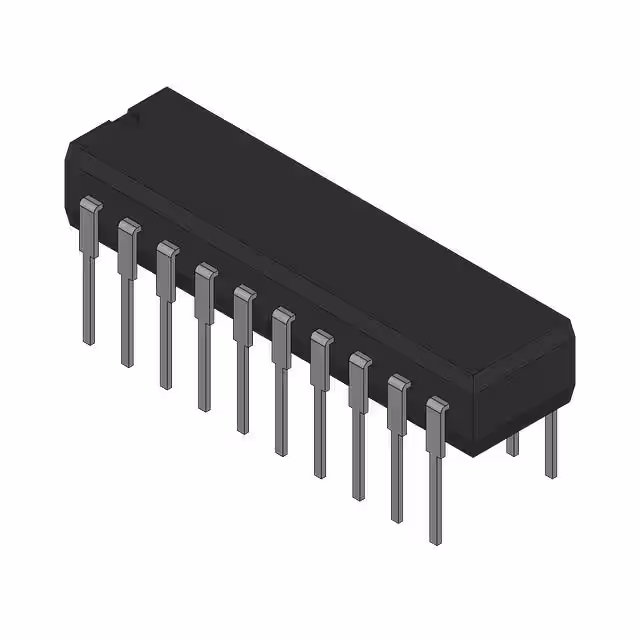

8302001RA

Manufacturer :

Texas Instruments

Product Category :

Buffers, Drivers, Receivers, Transceivers

Number of Pins :

20

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Polarity :

Non-Inverting

Output Polarity :

TRUE

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Power Supply Current-Max (ICC) :

27 mA

Temperature Grade :

Military

Factory Lead Time :

1 Week

Terminal Form :

THROUGH-HOLE

Pin Count :

20

Low Level Output Current :

12 mA

Screening Level :

MIL-STD-883

Operating Supply Voltage :

5 V

Turn-On Delay Time :

29 ns

Terminal Position :

Dual

Reach Compliance Code :

not_compliant

ECCN Code :

EAR99

Number of Ports :

2

Height :

5.08 mm

Seated Height-Max :

5.08 mm

Width :

6.92 mm

Propagation Delay (tpd) :

29 ns

Subcategory :

Bus Driver/Transceiver

Logic IC Type :

BUS DRIVER

Power Supplies :

5 V

Output Type :

TTL

Number of Elements :

1

Max Operating Temperature :

125 °C

Package :

Tube

Output Characteristics :

3-STATE

Technology :

TTL

Thickness :

4.57 mm

Surface Mount :

No

Number of Terminals :

20

Family :

ALS

Control Type :

ENABLE LOW

Propagation Delay :

29 ns

Number of Outputs :

8

Lifecycle Status :

Production (Last Updated: 2 days ago)

Min Supply Voltage :

4.5 V

Brand Name :

Texas

Qualification Status :

Qualified

Length :

24.2 mm

Series :

*

RoHS :

Compliant

Supply Voltage-Max (Vsup) :

5.5 V

Number of Bits :

8

Supply Voltage-Min (Vsup) :

4.5 V

Mount :

Through Hole

Min Operating Temperature :

-55 °C

Number of Functions :

1

Max I(ol) :

0.012 A

Base Product Number :

8302001

HTS Code :

8542.39.00.01

Package Shape :

RECTANGULAR

Manufacturer :

Texas

High Level Output Current :

-1 mA

Packing Method :

Tube

Radiation Hardening :

No

Product Status :

Active

Count Direction :

Unidirectional

Terminal Pitch :

2.54 mm

Lead Free :

Contains Lead

JESD-30 Code :

R-GDIP-T20

Max Supply Voltage :

5.5 V
