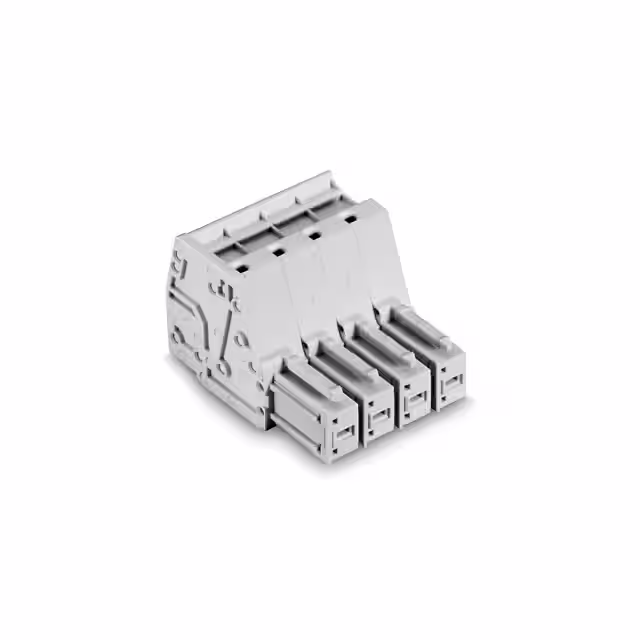

831-3105

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Current - UL :

42 A

Manufacturer :

Wago

Mount :

Clamp

Pitch :

0.300 (7.62mm)

Stripping Length :

13-15 mm

Current - IEC :

41A

Header Orientation :

-

Number of Contacts :

5 Pole

Contact Finish :

Tin

Number of Positions :

5

Current :

42 A

Features :

Retention Latches (Non-Wire Side)

Insulation Height :

1.083 (27.51mm)

Wire Gauge or Range - AWG :

8-20 AWG

Termination Style :

Screwless - Push-In Spring

Contact Gender :

FEMALE

Mounting Type :

Free Hanging (In-Line)

Color :

Gray

Operating Temperature :

-60°C ~ 105°C

RoHS :

Compliant

Gender :

FEMALE

Wire Gauge or Range - mm² :

0.5-10mm²

Approvals :

CCA, CSA, UL

Voltage - IEC :

1 kV

Contact Tail Length :

-

Temperature :

-60-105 °C

Termination :

Cage Clamp

Wire Strip Length :

13-15mm

Package :

Box

Product Status :

Active

Flammability Rating :

UL94 V-0

Wire Size :

20-8 AWG

Screw Size :

-

Plug Wire Entry :

180°

Contact Material :

Electrolytic Copper

Voltage :

600 V

Contact Mating Finish :

Tin

Series :

MCSMAXI 6

Ingress Protection :

-

Housing Material :

Polyamide (PA66), Nylon 6/6

Positions Per Level :

5

Material Flammability Rating :

UL94 V-0

Torque - Screw :

-

Size :

20-8 AWG

Number of Levels :

1

Type :

Plug, Female Sockets

Voltage - UL :

600 V
