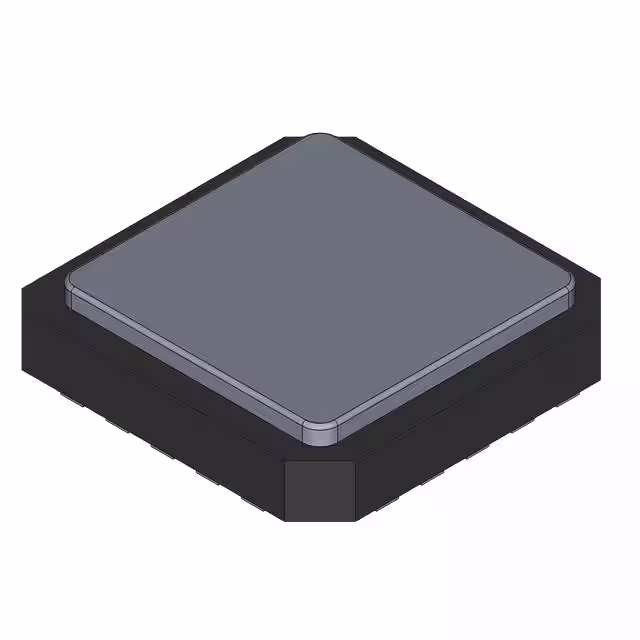

84092012A
Or copy the link below:
- Mfr.Part #
- 84092012A
- Manufacturer
- Texas Instruments
- Package / Case
- Datasheet
- Download
- Description
- SN54HC139 DUAL 2-LINE TO 4-LINE
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Texas Instruments
- Product Category :
- Signal Switches, Multiplexers, Decoders
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Packing Method :
- Tube
- Screening Level :
- MIL-PRF-38535
- Terminal Pitch :
- 1.27 mm
- Family :
- HC
- Qualification Status :
- Qualified
- Seated Height-Max :
- 2.03 mm
- Input Conditioning :
- Standard
- ECCN Code :
- EAR99
- Supply Voltage-Min (Vsup) :
- 2 V
- HTS Code :
- 8542.39.00.01
- JESD-30 Code :
- S-CQCC-N20
- Product Status :
- Active
- Pin Count :
- 20
- Power Supplies :
- 2/6 V
- Propagation Delay (tpd) :
- 255 ns
- Technology :
- CMOS
- Number of Terminals :
- 20
- Width :
- 8.89 mm
- Manufacturer :
- Texas
- Reach Compliance Code :
- not_compliant
- Factory Lead Time :
- 1 Week
- Temperature Grade :
- Military
- Logic IC Type :
- OTHER DECODER/DRIVER
- Length :
- 8.89 mm
- Terminal Form :
- NO LEAD
- Package Shape :
- Square
- Supply Voltage-Max (Vsup) :
- 6 V
- Output Polarity :
- INVERTED
- Number of Functions :
- 2
- Subcategory :
- Decoder/Driver
- Package :
- Tube
- Surface Mount :
- yes
- Max I(ol) :
- 0.0052 A
- Terminal Position :
- QUAD
- Brand Name :
- Texas
- Series :
- *
- Power Supply Current-Max (ICC) :
- 0.08 mA
- Number of Bits :
- 4
- Datasheets
- 84092012A
Signal Switches, Multiplexers, Decoders Texas Instruments 84092012A Overview
The Texas Instruments SN54HC139, identified by manufacturer part number 84092012A, is a high-performance dual 2-line to 4-line decoder/demultiplexer integrated circuit. This product excels in environments where system reliability and efficiency are critical. The 84092012A is designed to address the specific needs of signal routing and data management within complex digital systems. Utilizing advanced silicon-gate CMOS technology, it offers a robust solution for digital system designers looking for low-power consumption and high noise immunity. The Signal Switches, Multiplexers, Decoders Texas Instruments 84092012A ensures that digital information is routed accurately and efficiently, making it an essential component in a variety of applications.
84092012A Features
- Low power consumption: Ideal for battery-operated and power-sensitive applications due to minimal power requirements.
- High noise immunity: Built with CMOS technology, it provides stable performance even in noisy electrical environments.
- Dual decoding capability: Can independently decode two sets of inputs to four outputs each, increasing system flexibility.
- Wide operating voltage range: Operates between 2V to 6V, accommodating a variety of digital system needs.
- Durable design: Ensures long-term reliability and performance in demanding operational conditions.
84092012A Applications
- Telecommunications: Used in signal routing within network hardware to enhance data flow efficiency and system integrity.
- Computing systems: Applies in server motherboards and other computing platforms for effective data channel management.
- Consumer electronics: Integral in devices like TVs and audio systems, facilitating the selection of audio/video inputs.
- Industrial electronics: In automation systems, helps in signal decoding which is crucial for operational control.
- Automotive systems: Utilized in electronic control units for decoding signals required for various vehicle functions.
