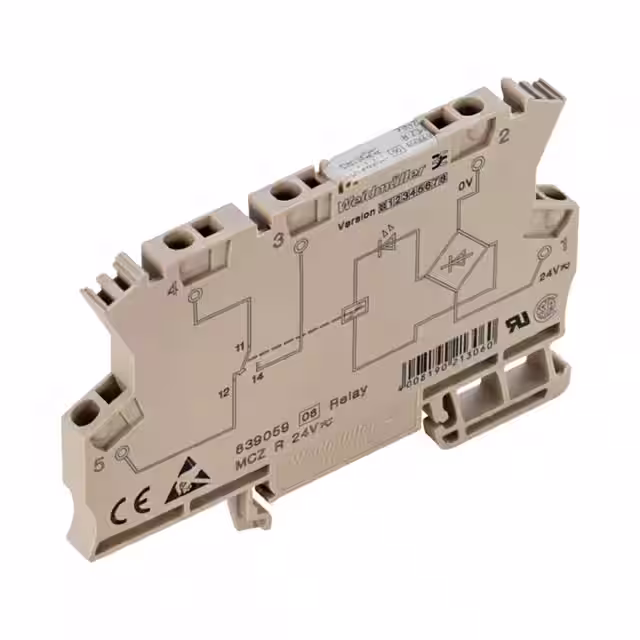

8420880000

Manufacturer :

Weidmuller

Product Category :

Power Relays, Over 2 Amps

Additional Feature :

COIL OPERATING VOLTAGE (AC): 70 V, COIL RELEASE VOLTAGE (AC): 22 V

Relay Type :

POWER/SIGNAL RELAY

Coil/Input Supply Type :

AC

Contact Voltage(AC)-Max :

250 V

Reach Compliance Code :

Compliant

Body Height :

63.2 mm

Mounting Feature :

THROUGH HOLE-STRAIGHT MOUNT

Coil Current(AC)-Max :

0.007 A

Contact/Output Supply Type :

AC

Body Length or Diameter :

91 mm

Operate Time :

8 ms

Coil Voltage(AC)-Max :

120 V

Body Breadth :

6 mm

Surface Mount :

No

Physical Dimension :

91mm x 6mm x 63.2mm

Reference Standard :

CE; CSA; UL

Release Time :

30 ms

Contact Current(AC)-Max :

6 A

Coil Power :

850 mW

Termination Type :

Solder

Relay Function :

SPDT

ECCN Code :

EAR99

Relay Action :

Momentary

Sealing :

IP20

Factory Lead Time :

2 Weeks

Manufacturer :

Weidmu00fcller Interface GmbH and Co. KG
