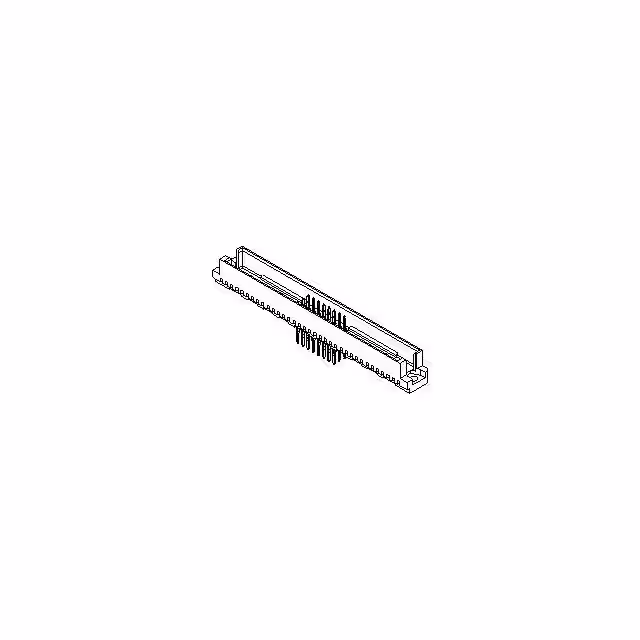

85017-0115

Manufacturer :

Molex

Product Category :

DIN 41612

Current Rating :

1.5 A

Termination :

Solder

Termination Type :

Press Fit

IEC Conformance :

No

Pitch :

2.54 mm

Package :

Box

Max Operating Temperature :

125 °C

Number of Contacts :

64(POS)

Plating :

Tin

Number of Rows :

3

Voltage Rating Max :

250VAC

Body Breadth :

0.437 inch

UL Flammability Code :

94V-0

Contact Resistance Max :

20(mohm)

Pbfree Code :

yes

Contact Material :

Phosphor Bronze

Body Orientation :

Straight

Operating Temp Range :

-55C to 125C

Option :

GENERAL PURPOSE

Housing Material :

Polyester

Terminal Pitch :

2.54 mm

Mount :

Through Hole

Termination Method :

Solder

Gender :

M

Number Of PCB Rows :

3

RoHS :

Compliant

Name of Rows Loaded :

A,B,C

Current Rating (Max) :

1.5/Contact(A)

Mounting Option 1 :

LOCKING

Series :

*

Max Voltage Rating (AC) :

250 V

Connector Type :

BOARD EURO CONNECTOR

Voltage Rating (AC) :

250 V

Contact Plating :

Gold Over Nickel

Number of Circuits :

64

Durability :

400 Cycles

Filter Feature :

No

Mounting Type :

BOARD

Mating Contact Pitch :

0.1 inch

Min Operating Temperature :

-55 °C

Contact Gender :

Male

Product Height (mm) :

11.6(mm)

DIN Conformance :

yes

Data Rate :

622 Mbps

PCB Contact Row Spacing :

2.54 mm

Country of Origin :

In

Packaging :

Tray

Reliability :

COMMERCIAL

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Mixed Contacts :

yes

Body Depth :

0.457 inch

Additional Feature :

PANEL MOUNTABLE

Contact Resistance :

20 mΩ

Number of Columns :

20

Subcategory :

Headers and Edge Type Connectors

Body/Shell Style :

Receptacle

Reach Compliance Code :

Compliant

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Housing Color :

Gray

Rated Current (Signal) :

1.5 A

Product Length (mm) :

95(mm)

Pitch (mm) :

2.54(mm)

Product Depth (mm) :

11.1(mm)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Orientation :

Vertical

Terminal Length :

0.228 inch

PCB Contact Pattern :

RECTANGULAR

Number of Positions :

64

Mounting Style :

Through Hole

Product Status :

Active

MIL Conformance :

No

Total Number of Contacts :

60

Contact Style :

Hybrid

Contact Arrangement :

S60C4

Mating Contact Row Spacing :

0.1 inch

Type :

DIN 41612

Polarization Key :

ENDS

Manufacturer :

Molex

Reference Standard :

UL, CSA

Number of Contact Rows :

3
