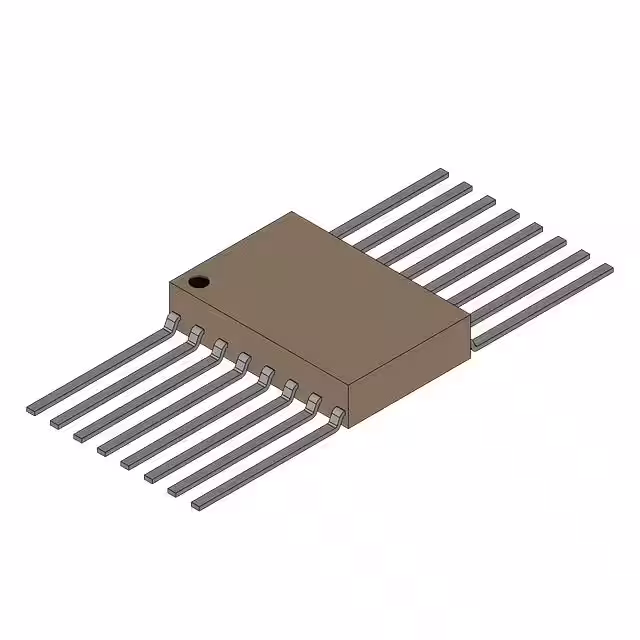

8508401FA

Manufacturer :

Texas Instruments

Product Category :

Signal Switches, Multiplexers, Decoders

Number of Terminals :

16

Output Polarity :

INVERTED

Logic Function :

Decoder

Package :

Tube

Screening Level :

MIL-STD-883

Max Operating Temperature :

125 °C

Surface Mount :

yes

Number of Outputs :

10

Width :

6.73 mm

Seated Height-Max :

2.03 mm

Manufacturer :

Texas

Mount :

Surface Mount

Supply Voltage-Min (Vsup) :

4.5 V

Propagation Delay (tpd) :

50 ns

Length :

10.3 mm

Logic IC Type :

DECIMAL DECODER/DRIVER

RoHS :

Compliant

Number of Inputs :

4

Low Level Output Current :

80 mA

Qualification Status :

Qualified

JESD-30 Code :

R-GDFP-F16

Terminal Form :

Flat

Power Supplies :

5 V

Terminal Pitch :

1.27 mm

Number of Pins :

16

Operating Supply Voltage :

5 V

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

ECCN Code :

EAR99

Family :

LS

Number of Channels :

1

Lifecycle Status :

Production (Last Updated: 1 week ago)

Input Conditioning :

Standard

Number of Functions :

1

Product Status :

Active

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Output Characteristics :

OPEN-COLLECTOR

Power Supply Current-Max (ICC) :

13 mA

Brand Name :

Texas

Reach Compliance Code :

not_compliant

Subcategory :

Decoder/Driver

High Level Output Current :

-250 µA

Pin Count :

16

Terminal Position :

Dual

Packaging :

Rail/Tube

HTS Code :

8542.39.00.01

Number of Bits :

10

Height :

2.03 mm

Factory Lead Time :

1 Week

Packing Method :

Tube

Number of Elements :

1

Package Shape :

RECTANGULAR

Max Supply Voltage :

5.5 V

Temperature Grade :

Military

Max I(ol) :

0.08 A

Min Operating Temperature :

-55 °C

Min Supply Voltage :

4.5 V

Supply Voltage-Max (Vsup) :

5.5 V

Thickness :

1.65 mm

Polarity :

Inverting

Series :

*

Additional Feature :

ION MAX=80MA @ VOL MAX=3V

Lead Free :

Contains Lead

Propagation Delay :

50 ns

Technology :

TTL
