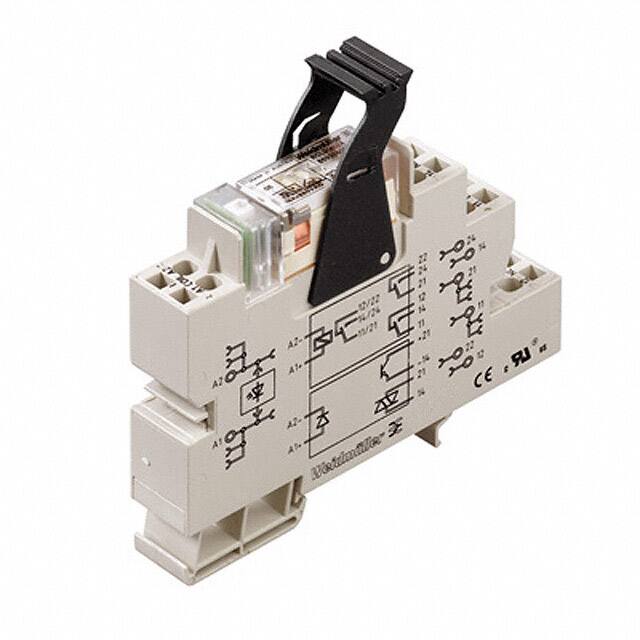

8536591001
Or copy the link below:
- Mfr.Part #
- 8536591001
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE DPDT 10A 12V
- Stock
- 38,737
- In Stock ：
- 38,737
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Power Relays, Over 2 Amps
- Relay Function :
- DPDT
- Coil Current(DC)-Max :
- 0.033 A
- Coil Release Voltage(DC) :
- 1.2 V
- Surface Mount :
- No
- Termination Type :
- Connector
- Body Breadth :
- 15.3 mm
- ECCN Code :
- EAR99
- Contact Current(AC)-Max :
- 16 A
- Body Length or Diameter :
- 92 mm
- Coil Power :
- 400 mW
- Relay Action :
- Momentary
- Coil/Input Supply Type :
- DC
- Reference Standard :
- CE; UL
- Body Height :
- 87 mm
- Reach Compliance Code :
- Compliant
- Coil Resistance :
- 363.64 Ω
- Contact/Output Supply Type :
- AC
- Sealing :
- IP20
- Operate Time :
- 9 ms
- Release Time :
- 45 ms
- Coil Voltage(DC)-Max :
- 12 V
- Factory Lead Time :
- 10 Weeks
- Coil Operate Voltage(DC) :
- 8.4 V
- Relay Type :
- POWER/SIGNAL RELAY
- Physical Dimension :
- 92mm x 15.3mm x 87mm
- Product Type :
- Molded case circuit breaker
- Contact Voltage(AC)-Max :
- 250 V
- Manufacturer :
- Weidmu00fcller Interface GmbH and Co. KG
- Mounting Feature :
- DIN-RAIL MOUNT
- Datasheets
- 8536591001
8536591001 datasheet pdf and Power Relays, Over 2 Amps product details from BHC Components stock available at
