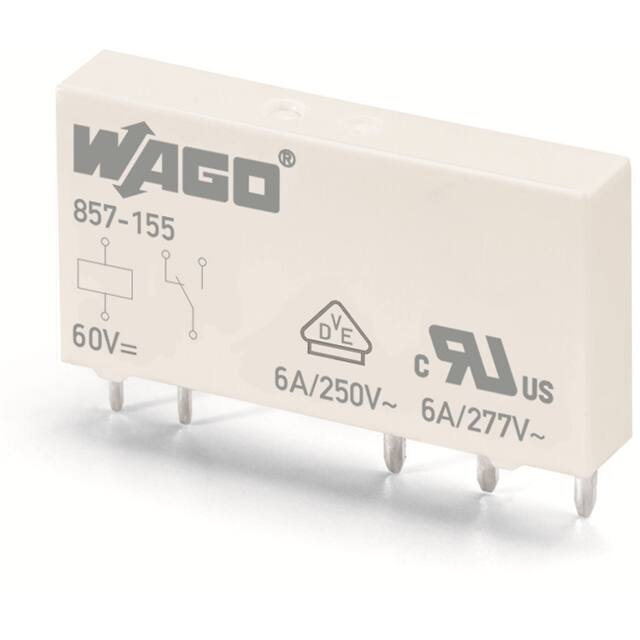

857-155

Manufacturer :

WAGO

Product Category :

Power Relays, Over 2 Amps

Operate Time :

8 ms

Length :

5mm

Width :

5

Switching Voltage :

250VAC - Max

Number of contacts as normally closed contact :

0

Nominal current :

6

Termination :

Socket

Application :

Electronic To Electromechanical

Mounting Type :

Through Hole

Approvals :

cULR, VDE

Terminal Type :

Plug In

Material of contact surface :

Tin

RoHS :

yes

Number of contacts as change-over contact :

1

With detachable clamps :

No

Package :

Box

Mounting :

Plug In

Termination Style :

PC Pin

Contact Rating (Current) :

6 A

Product Status :

Active

Enclosure :

Plastic

Release Time :

4 ms

Type of electric connection :

Plug-in connection

Contact Form :

SPDT (1 Form C)

Contact Material :

Silver Tin Oxide (AgSnO)

Depth :

15mm

Contacts :

SPDT

Coil Voltage :

60VDC

Operating Temperature :

-40°C ~ 85°C

Rated control supply voltage at DC :

60 - 60

Relay Type :

GENERAL PURPOSE

Number of Poles :

1

Number of contacts as normally open contact :

0

Switching Current :

6A

Height :

28mm

Manufacturer :

Wago

Series :

857

Voltage type for actuating :

DC

Degree of protection (IP) :

IP20

Standards Met :

UL 508
