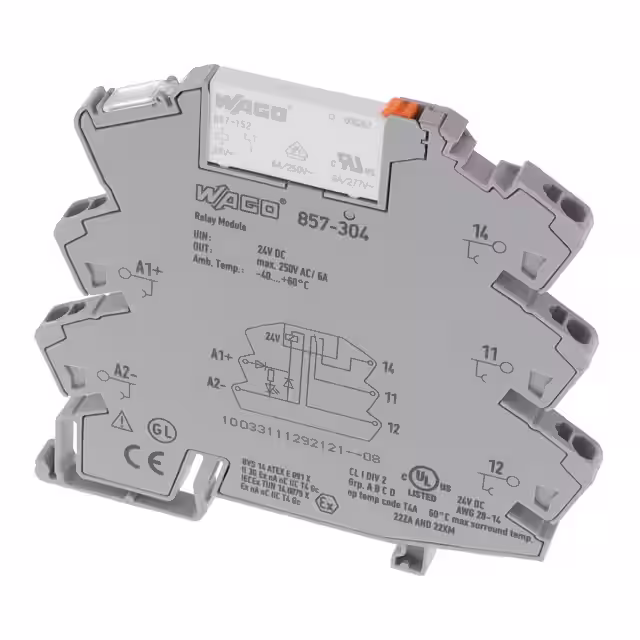

857-304

Manufacturer :

WAGO

Product Category :

Power Relays, Over 2 Amps

Nominal current (details) :

6A

Switching voltage (max.) :

250V AC

Coil Current :

10 mA

Must Operate Voltage :

4.8 VDC

Contact Configuration :

SPST

Coil Insulation :

-

Mounting Type :

DIN Rail

Operate Time :

8 ms

Manufacturer :

Wago

Series :

-

Switching current (max.) :

6A

Content :

1pc(s)

Contact Form :

SPDT (1 Form C)

Type :

857-304

Coil Type :

Non Latching

Relay Type :

GENERAL PURPOSE

Mounting :

DIN Rail

Package :

Bulk

Base Product Number :

857

Nominal voltage :

24V dc

Max. temperature :

+60°C

Coil Voltage :

24VDC

Width :

6mm

Contact Material :

Silver Tin Oxide (AgSnO)

Termination :

Socket

Packaging :

Box

Enclosure :

Plastic

Contact Rating (Current) :

6 A

Release Time :

8 ms

Max. switching capacity :

1250VA

Standards Met :

857-304:GL, ANSI/ISA 12.12.01, EN 60664-1, EN 61140, EN 61810-1, UL 508

Coil Resistance :

2.4 kOhms

Durability :

5 x 106 switching cycles

Maximum Operating Temperature :

+60°C

Features :

Lighted Indicator, Socket Included

Connection :

Screw Terminals

Dim :

(L x W x H) 94 x 6 x 81 mm

Special Features :

Integrated Yellow LED

RoHS :

yes

Seal Rating :

-

Termination Style :

Spring Terminal

Height :

81mm

Number of Poles :

1

Must Release Voltage :

3.6 VDC

Switching Voltage :

250VAC - Max

Contacts :

SPDT

Approvals :

UL

Min. temperature :

-25°C

Minimum Operating Temperature :

-40°C

Operating Temperature :

-40°C ~ 60°C

Product Status :

Active

Ambient temperature :

-25 - +60°C

Nominal voltage (details) :

24V dc

Depth :

81mm

Rad Hardened :

No

Contact Current :

6A

Length :

94mm

Terminal Type :

Plug In
