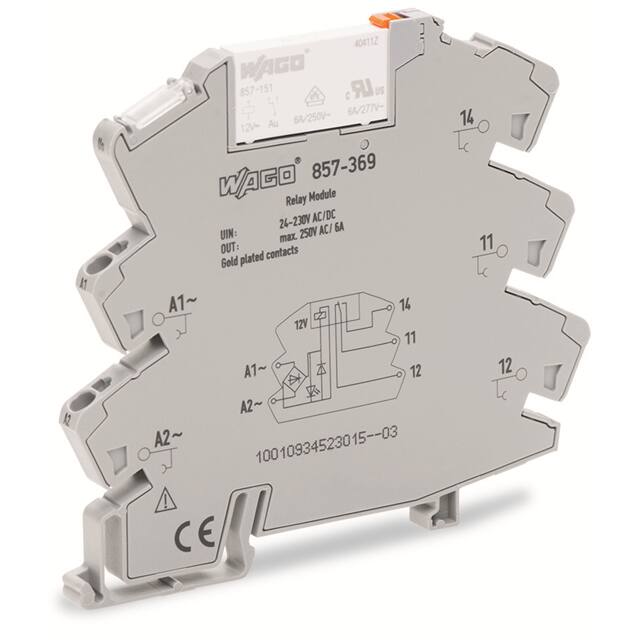

857-369

Manufacturer :

WAGO

Product Category :

Power Relays, Over 2 Amps

Operating Temperature :

-25°C ~ 70°C

With detachable clamps :

No

Mounting :

DIN Rail

Nominal current :

6

Release Time :

25 ms

Contact Form :

SPDT (1 Form C)

Voltage type for actuating :

AC/DC

Features :

Lighted Indicator

Number of contacts as change-over contact :

1

Enclosure :

Plastic

Height :

94

Coil Voltage :

24 ~ 230VAC/DC

Relay Type :

GENERAL PURPOSE

Approvals :

UL

RoHS :

yes

Contacts :

SPDT

Termination Style :

Spring Terminal

Type of electric connection :

Spring clamp connection

Depth :

81

Product Status :

Active

Termination :

Cage Clamp

Number of contacts as normally closed contact :

0

Rated control supply voltage at AC 50 Hz :

24 - 230

Width :

6

Contact Material :

Gold Plated, Silver Nickel

Operate Time :

15 ms

Contact Rating (Current) :

6 A

Coil Current :

3.5 mA

Rated control supply voltage at DC :

24 - 230

Switching Voltage :

250VAC - Max

Manufacturer :

Wago

Mounting Type :

DIN Rail

Rated control supply voltage at AC 60 Hz :

24 - 230

Package :

Box

Series :

857

Material of contact surface :

NICKEL/GOLD

Number of contacts as normally open contact :

0

Degree of protection (IP) :

IP20
