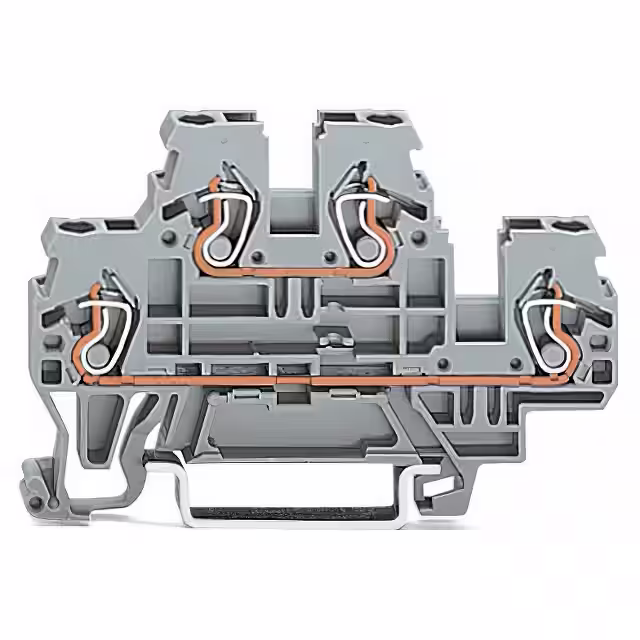

870-503

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Features :

-

Product Status :

Active

Wire Gauge or Range - mm² :

0.08-2.5mm²

Color :

Gray

Material Flammability Rating :

UL94 V-0

RoHS :

yes

Connectable conductor cross section multi-wired :

0.08 - 2.5

Mounting Type :

DIN Rail

Packaging :

Box

Housing Color :

Gray

Voltage - UL :

-

Inflammability class of insulation material according to with UL94 :

V0

Stripping Length :

6mm ~ 7mm

Current - IEC :

24 A

Number of Levels :

2

HTS :

8536.90.40.00

Maximum Operating Temperature (°C) :

105

Terminal - Width :

5.0mm

PPAP :

No

Number of Contacts :

4

Mounting :

DIN Rail

Voltage - IEC :

500V

Current Rating (Max) :

24(A)

Disconnect Type :

-

Rated current In :

24

EU RoHS :

Compliant

Material - Insulation :

-

Maximum Voltage Rating :

500V

Package :

Box

Rad Hardened :

No

Length :

70

Automotive :

No

Width :

5

Wire Gauge or Range - AWG :

12-28 AWG

Series :

-

Number of Contact Rows :

4

Fuse Type :

-

ECCN (US) :

EAR99

Mounting Style :

Din-Rail

Connectable conductor cross section solid-core :

0.08 - 2.5

Minimum Operating Temperature (°C) :

-60

Number of Rows :

4

Height :

70

Wire Gauge :

12-28(AWG)

Number of Circuits :

2

Maximum Current Rating (A) :

24

Termination Style :

Push In, Spring

Manufacturer :

Wago

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

Operating Voltage (Max) :

500V

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 4

Depth :

40

Approvals :

cURus

Type :

Terminal Block

Number of Positions :

4
