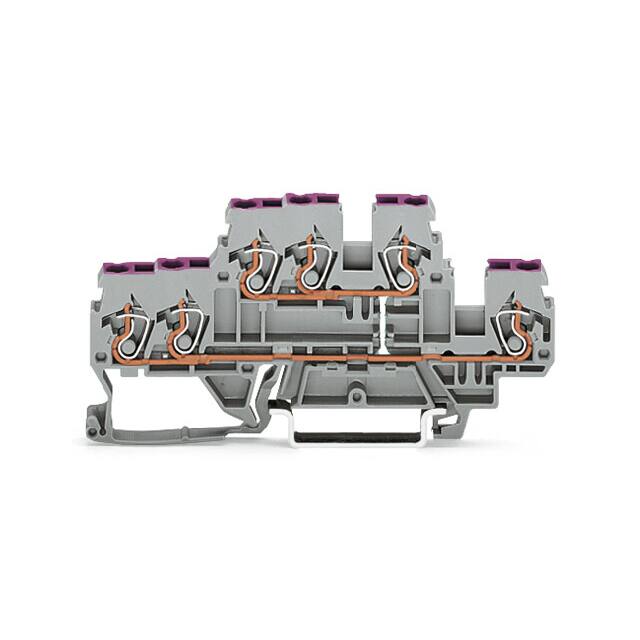

870-538

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Manufacturer :

Wago

HTS :

8536.90.40.00

ECCN (US) :

EAR99

Package :

Box

Material Flammability Rating :

UL94 V-0

Voltage - UL :

-

Length :

91

Features :

-

Voltage - IEC :

500V

Approvals :

cURus

Type :

Double-Deck Block

Rated current In :

24

Width :

5

Number of Positions :

6

Height :

91

Inflammability class of insulation material according to with UL94 :

V0

Number of Levels :

2; Connected

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Termination Style :

Push In, Spring

RoHS :

yes

EU RoHS :

Compliant

Connectable conductor cross section solid-core :

0.08 - 2.5

Stripping Length :

6mm ~ 7mm

Automotive :

No

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 4

Mounting Type :

DIN Rail

Wire Gauge or Range - AWG :

12-28 AWG

PPAP :

No

Connectable conductor cross section multi-wired :

0.08 - 2.5

Wire Gauge or Range - mm² :

0.08-2.5mm²

Fuse Type :

-

Disconnect Type :

-

Current - IEC :

24 A

Color :

Gray

Number of Circuits :

2

Depth :

40

Product Status :

Active

Terminal - Width :

5.0mm

Series :

-
