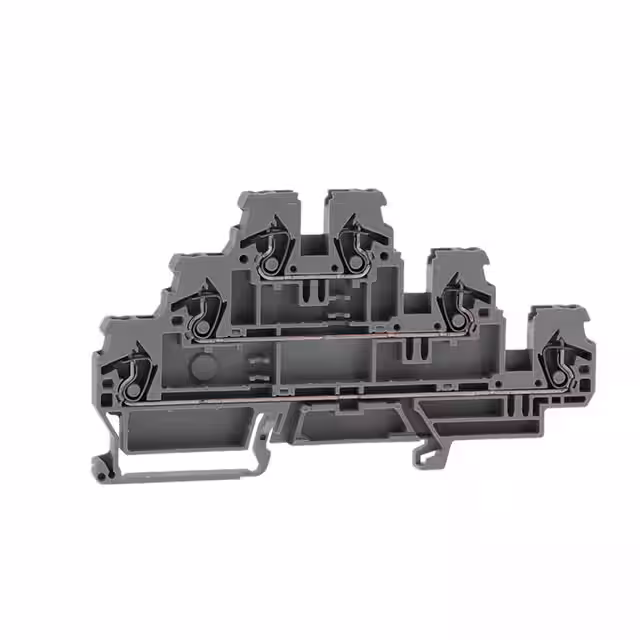

870-551

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Wire Gauge or Range - mm² :

0.08-2.5mm²

Termination Style :

Push In, Spring

Type :

Terminal Block

Number of Contacts :

6(POS)

Material - Insulation :

-

Pitch :

5mm

Voltage - UL :

-

Flammability Rating :

UL94 V-0

Number of Positions :

6

Rated Voltage :

500V

Voltage Rating :

500 V

Packaging :

Box

Features :

-

Housing Color :

Gray

Wire Gauge or Range - AWG :

12-28 AWG

Current - IEC :

24 A

Base Product Number :

870

Terminal - Width :

5.0mm

Operating Voltage (Max) :

500V

Fuse Type :

-

REACH SVHC :

No SVHC

Mounting Style :

T DIN RAIL

Series :

870

Rad Hardened :

No

Wire Gauge :

12-28(AWG)

Stripping Length :

6mm ~ 7mm

Product Depth (mm) :

5(mm)

Product Height (mm) :

52.5(mm)

Material Flammability Rating :

-

Disconnect Type :

-

Color :

Grey

Wire/Cable Gauge :

28 AWG

RoHS :

Compliant

Product Length (mm) :

106(mm)

Product Status :

Active

Current Rating :

24A

Current Rating (Max) :

24(A)

Package :

Bulk

Number of Levels :

Triple

Number of Contact Rows :

3

Rated Current :

24A

Voltage - IEC :

500V
