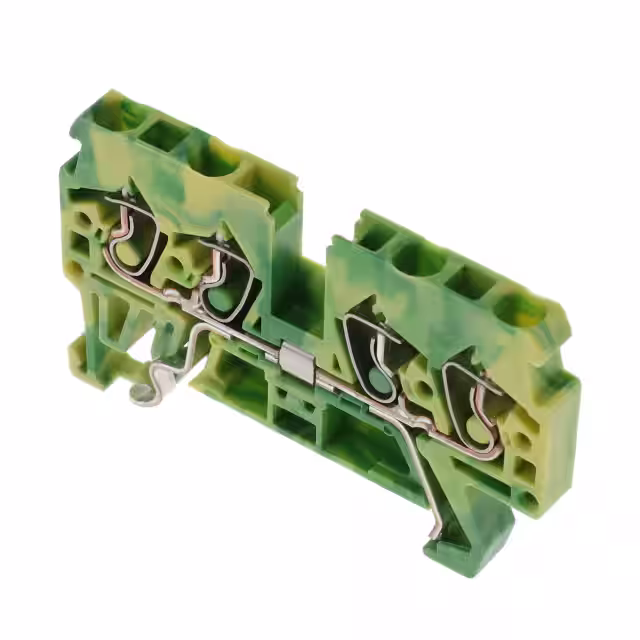

870-837

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Number of Levels :

1

Flammability Rating :

UL94 V-0

PPAP :

No

Product Status :

Active

Number of Rows :

4

Approvals :

cURus

Body Orientation :

Straight

Length :

55

Terminal - Width :

5.0mm

Features :

-

Connectable conductor cross section multi-wired :

0.08 - 2.5

ECCN (US) :

EAR99

Product Length (mm) :

5

Product Height (mm) :

27.5

Rad Hardened :

No

Number of Circuits :

1

Automotive :

No

Type :

Terminal Block

Color :

Green, Yellow

Mounting :

DIN Rail

Wire Gauge :

12-28(AWG)

Housing Color :

Green/yellow

HTS :

8536.90.40.00

Product Depth (mm) :

55

Package :

Bulk

Manufacturer :

Wago

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

Termination Style :

Push In, Spring

Disconnect Type :

-

Minimum Operating Temperature (°C) :

-60

Voltage - UL :

-

Stripping Length :

6mm ~ 7mm

Housing Material :

Polyamide 6/6

Depth :

27.5

Maximum Operating Temperature (°C) :

105

Mounting Type :

DIN Rail

Number of Positions :

4

Packaging :

Box

Gender :

F

Wire Gauge or Range - mm² :

0.08-2.5mm²

EU RoHS :

Compliant

RoHS :

yes

Rated Current :

-

Material Flammability Rating :

-

Width :

5

Series :

-

Rated Voltage :

-

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Number of Contact Rows :

4

Inflammability class of insulation material according to with UL94 :

V0

Number of Contacts :

4

Wire Gauge or Range - AWG :

12-28 AWG

Connectable conductor cross section solid-core :

0.08 - 2.5

Voltage - IEC :

-

Fuse Type :

-

Base Product Number :

870

Mounting Style :

Din-Rail

Height :

55

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 4
