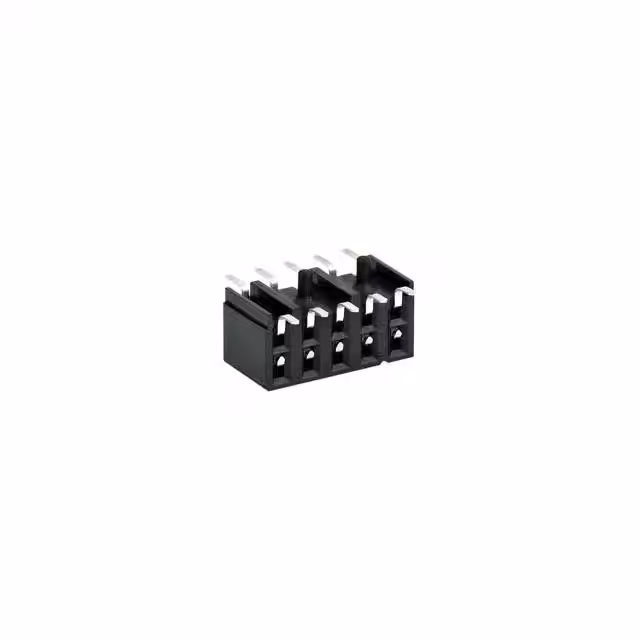

87368-4425

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Row Spacing :

2 mm

Accessory Type :

-

Body/Shell Style :

Receptacle

Flammability Rating :

UL 94 V-0

Mating Contact Row Spacing :

0.079 inch

JESD-609 Code :

e3

Termination Style :

Solder

Reach Compliance Code :

Compliant

RoHS :

Details

PCB Contact Row Spacing :

6.2484 mm

Dielectric Withstanding Voltage :

700VAC V

Housing Color :

Black

Maximum Operating Temperature :

+ 105 C

Operating Temp Range :

-55C to 105C

Polarization Key :

POLARIZED HOUSING

Insertion Force-Max :

1.7514 N

Pbfree Code :

yes

Contact Pattern :

RECTANGULAR

Terminal Pitch :

2 mm

Rated Current (Signal) :

1 A

Number of Contacts :

44(POS)

IEC Conformance :

No

Housing Material :

Nylon

UL Flammability Code :

94V-0

Product Length (mm) :

44.2(mm)

Product :

Headers

Pitch :

2.0000 mm

Reliability :

COMMERCIAL

Body Breadth :

0.193 inch

Series :

87368

Withdrawl Force-Min :

.1946 N

DIN Conformance :

No

Contact Plating :

Gold

Contact Resistance :

15 mΩ

Contact Type :

-

Body Depth :

0.197 inch

Subcategory :

Headers and Wire Housings

Termination Type :

Surface Mount

Plating Thickness :

30u inch

Mounting Option 1 :

LOCKING

Flammability :

94V-0

Mixed Contacts :

No

Manufacturer :

Molex

Product Type :

Headers and Wire Housings

Body Orientation :

RIGHT ANGLE

Filter Feature :

No

Packaging :

Tube

Minimum Operating Temperature :

- 55 C

MIL Conformance :

No

Product Height (mm) :

4.9(mm)

Contact Material :

Phosphor Bronze

Contact Finish Termination :

TIN (100) OVER NICKEL

Brand :

Molex

Type :

Socket Strip

Pitch (mm) :

2(mm)

Application :

Board-to-Board

Board Mounting Option :

PEG

Contact Style :

SQ PIN-SKT

Factory Lead Time :

10 Weeks

Product Depth (mm) :

8.3(mm)

Mating Contact Pitch :

0.079 inch

Insulation Resistance :

1000000000 Ω

Connector Type :

BOARD CONNECTOR

Current Rating :

1 A

Total Number of Contacts :

44

Voltage Rating Max :

125V

Mounting Angle :

RIGHT ANGLE

Additional Feature :

Side Entry

Voltage Rating :

125 V

Mounting :

Surface Mount

Orientation :

RIGHT ANGLE

Termination Method :

Solder

Number of Positions :

44 Position

Current Rating (Max) :

1/Contact(A)

Product Length :

44.2 mm

Durability :

25 Cycles

Package :

Box

Tradename :

Milli-Grid

Mounting Type :

BOARD

Number of Contact Rows :

2

Option :

GENERAL PURPOSE

Mounting Style :

Surface Mount

Product Status :

Active

Contact Gender :

Socket (Female)

Number of Rows :

2 Row

Base/Housing Material :

Nylon

Operating Temperature :

-55 to 105 °C

Number Of PCB Rows :

2

PCB Contact Pattern :

RECTANGULAR

Reference Standard :

UL, CSA

Housing Gender :

-

Gender :

Receptacle

Product Category :

Headers and Wire Housings
