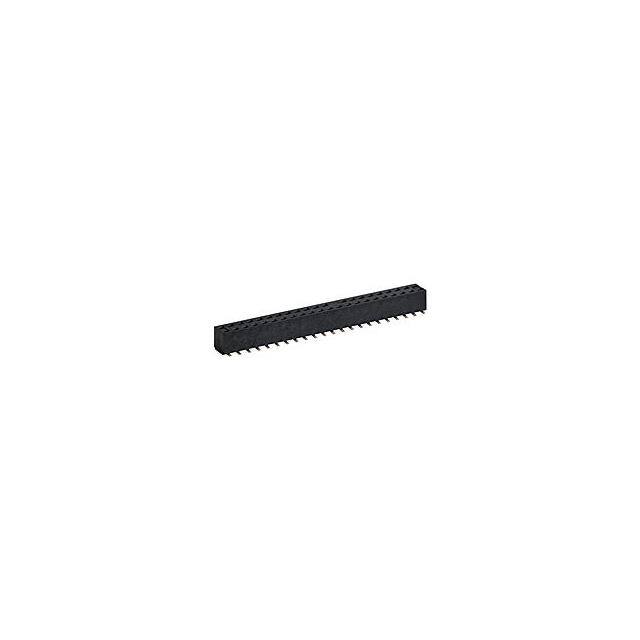

87381-0818

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

IEC Conformance :

No

Plating Thickness :

15u inch

Accessory Type :

-

Mixed Contacts :

No

Insulation Resistance :

1000000000 Ω

Mating Contact Row Spacing :

0.079 inch

Connector Type :

BOARD CONNECTOR

Reference Standard :

UL, CSA

Current Rating :

1.9 A

Maximum Operating Temperature :

+ 105 C

RoHS :

Details

Tradename :

Milli-Grid

Package :

Box

ECCN Code :

EAR99

Product Depth (mm) :

6.2(mm)

Glow Wire Compliant :

Non-Compliant

Reliability :

COMMERCIAL

Termination Style :

Solder

Max Operating Temperature :

105 °C

Type :

Socket Strip

Number of Rows :

2 Row

DIN Conformance :

No

Voltage Rating Max :

125V

Mating Contact Pitch :

0.079 inch

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Series :

87381

Number of Contact Rows :

2

PCB Contact Pattern :

RECTANGULAR

Number Of PCB Rows :

2

Flammability Rating :

UL 94 V-0

Dielectric Withstanding Voltage :

1000VAC V

REACH SVHC :

No SVHC

Housing Color :

Black

Mounting Angle :

Straight

Body Depth :

0.157 inch

HTS Code :

8536.69.40.40

Termination :

Solder

Insertion Force-Max :

1.7514 N

Gender :

RCP

Subcategory :

Headers and Wire Housings

Terminal Pitch :

2 mm

Min Operating Temperature :

-55 °C

Product Status :

Active

Manufacturer :

Molex

Product :

Headers

Mounting Type :

BOARD

Contact Material :

Phosphor Bronze

Mounting Style :

Surface Mount

Withdrawl Force-Min :

.1946 N

Number of Circuits :

8

Pitch (mm) :

2(mm)

Product Type :

Headers and Wire Housings

Current Rating (Max) :

1.9/Contact(A)

Additional Feature :

ROHS,ELV COMPLIANT W/TUBE PKG

Brand :

Molex

Contact Gender :

Socket (Female)

Packaging :

Tube

Contact Finish Termination :

Tin (Sn) - with Nickel (Ni) barrier

MIL Conformance :

No

Number of Positions :

8 Position

Option :

GENERAL PURPOSE

Body/Shell Style :

PLUG

Country of Origin :

SG

Voltage Rating :

125 V

Product Length (mm) :

8(mm)

Rated Current (Signal) :

1.9 A

Contact Resistance :

15 mΩ

Housing Gender :

-

Plating :

Tin

Flammability :

94V-0

Termination Method :

Solder

Reach Compliance Code :

Compliant

Product Category :

Headers and Wire Housings

Pbfree Code :

yes

Minimum Operating Temperature :

- 55 C

Number of Contacts :

8(POS)

PCB Contact Row Spacing :

5.5118 mm

Pitch :

2 mm

Body Breadth :

0.165 inch

Contact Plating :

Gold

Application :

Board-to-Board

Mount :

Surface Mount

Contact Pattern :

RECTANGULAR

Contact Style :

SQ PIN-SKT

Total Number of Contacts :

8

Row Spacing :

2 mm

Lifecycle Status :

Production (Last Updated: 2 years ago)

Housing Material :

Thermoplastic

Contact Type :

-

Operating Temp Range :

-55C to 105C

Orientation :

Vertical

Termination Type :

Surface Mount

JESD-609 Code :

e3

Body Orientation :

Straight

Product Height (mm) :

4(mm)

Filter Feature :

No

Durability :

25 Cycles
