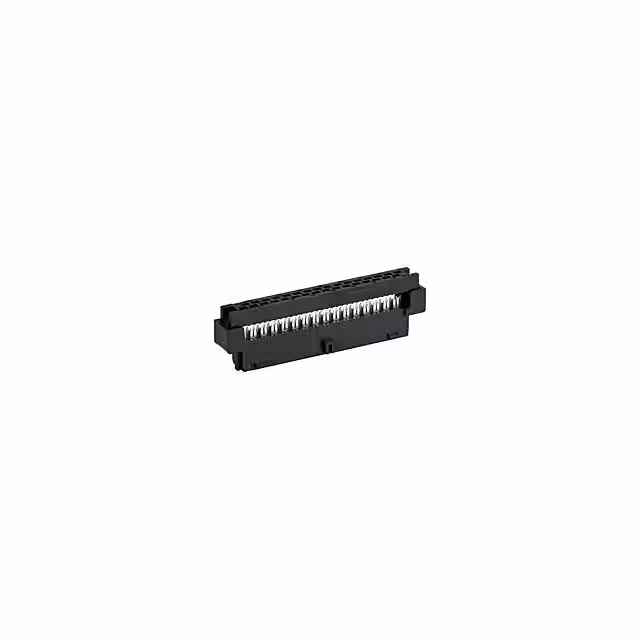

87568-1274

Manufacturer :

Molex

Product Category :

Free Hanging, Panel Mount

Brand :

Molex

MIL Conformance :

No

Number of Circuits :

12

Manufacturer :

Molex

Packaging :

Tray

Total Number of Contacts :

12

Voltage Rating :

125 V

Current Rating :

1 A

Number of Positions :

12 Position

Rated Current (Signal) :

1 A

Product Category :

Headers and Wire Housings

Insulator Color :

Black

Tradename :

Milli-Grid

Connector Type :

BOARD CONNECTOR

Max Operating Temperature :

85 °C

Type :

Receptacle

Housing Material :

Polyester

IEC Conformance :

No

Mounting Style :

Cable Mount / Free Hanging

Contact Plating :

Gold

RoHS :

Details

Housing Color :

Black

Filter Feature :

No

Package :

Box

Termination Style :

IDC

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Mounting Option 1 :

FRICTION RAMP

Durability :

100 Cycles

Withdrawl Force-Min :

.3892 N

Number of Contacts :

12

Minimum Operating Temperature :

- 20 C

Contact Material :

BERYLLIUM COPPER

Mount :

CABLE

DIN Conformance :

No

Pbfree Code :

yes

Gender :

FEMALE

Plating Thickness :

30u inch

Body Breadth :

0.219 inch

Panel Mount :

No

Number of Rows :

2

Body Depth :

0.449 inch

Reach Compliance Code :

Compliant

Option :

GENERAL PURPOSE

Contact Style :

SQ PIN-SKT

Product Type :

Headers and Wire Housings

Reliability :

COMMERCIAL

Additional Feature :

MILLI-GRID, POLARIZED

Product Status :

Active

Termination Type :

IDC

Min Operating Temperature :

-20 °C

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Wire Gauge :

28 AWG

Maximum Operating Temperature :

+ 85 C

Insertion Force-Max :

1.946 N

Country of Origin :

SG

JESD-609 Code :

e4

Body/Shell Style :

Receptacle

Series :

87568

Termination :

IDC

Product :

Headers

Contact Finish Termination :

GOLD (30) OVER NICKEL

Polarization Key :

CENTER

Lifecycle Status :

Production (Last Updated: 2 years ago)

Mounting Type :

CABLE

Subcategory :

Headers and Wire Housings

Orientation :

RIGHT ANGLE

Dielectric Withstanding Voltage :

500VAC V

Insulation Resistance :

5000000000 Ω

Reference Standard :

UL, CSA

Contact Pattern :

RECTANGULAR

Contact Resistance :

30 mΩ

Pitch :

2 mm

UL Flammability Code :

94V-0

Mating Contact Row Spacing :

0.079 inch

Glow Wire Compliant :

Non-Compliant

Mating Contact Pitch :

0.079 inch

Mixed Contacts :

No

Flammability Rating :

UL 94 V-0

Mounting Option 2 :

LOCKING

Wire/Cable Gauge :

28 AWG

Contact Gender :

Socket (Female)
