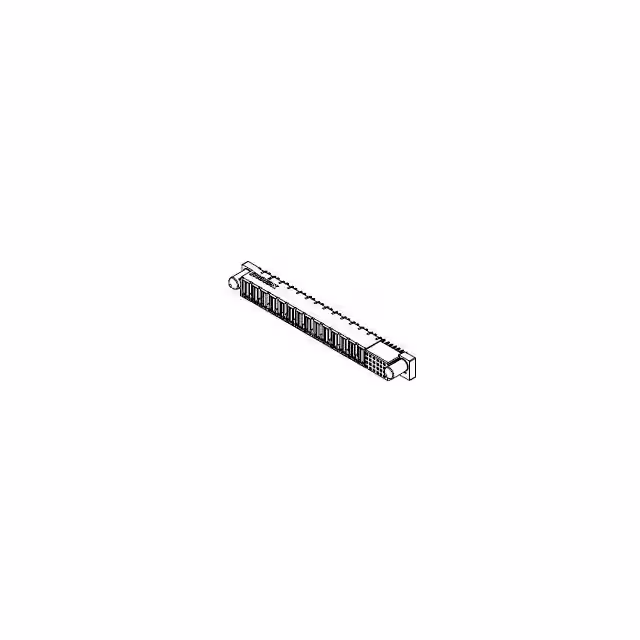

87710-2002

Manufacturer :

Molex

Product Category :

Specialized

Gender :

RCP

Product Height (mm) :

17.02(mm)

Mounting Type :

Through Hole

Color :

Black

Shell Material :

GLASS FILLED LIQUID CRYSTAL POLYMER

Mounting Option 1 :

Guide Pin

Product Depth (mm) :

12.09(mm)

Contact Style :

Hybrid

Empty Shell :

No

Body Breadth :

0.476 inch

Packaging :

Tray

Mounting Style :

Through Hole

Contact Resistance :

20 mΩ

Insulator Color :

Black

Number of Rows :

4

Material Flammability Rating :

UL94 V-0

Reach Compliance Code :

Compliant

Housing Color :

Black

Operating Temperature Min Deg. C :

-20C

Connector Usage :

-

Dielectric Withstanding Voltage :

2500VAC V

Series :

EXTreme PowerPlus 87710

Current Rating (Max) :

(50/30/2.5)/CONTACT(A)

DIN Conformance :

No

Type :

Wire to Board

UL Flammability Code :

94V-0

Manufacturer :

Molex

Contact Material :

COPPER ALLOY

Voltage Rating :

-

Insulation Resistance :

5000000000 Ω

Subcategory :

Headers and Edge Type Connectors

Number of Ports :

1(Port)

Durability :

100 Cycles

Pitch (mm) :

2.54(mm)

Pbfree Code :

yes

Voltage Rating Max :

250VDC

Contact Resistance Max :

0.5/20(mohm)

Number of Terminals :

30

Body Orientation :

Straight

Contact Gender :

FEMALE

Operating Temperature Max Deg. C :

105C

Additional Feature :

TERMINAL PITCH FOR POWER CONTACT: 6.35

Reference Standard :

CSA, UL

Package :

Box

Number of Positions Loaded :

All

Number of Contact Rows :

1/4

Mounting Option 2 :

LOCKING

Connector Type :

Receptacle, Female Sockets and Blade Sockets

Plating Thickness :

30u inch

IEC Conformance :

No

Filter Feature :

No

Current Rating (Amps) :

-

Mixed Contacts :

yes

Number of Columns :

-

Product Length (mm) :

69.85(mm)

Body/Shell Style :

Receptacle

Number of Contacts :

6Power/24Signal(POS)

Pitch :

0.100 (2.54mm)

Housing Material :

Thermoplastic

Contact Layout, Typical :

24 Signal, 6 Power

Rated Current (Signal) :

2.5 A

Contact Arrangement :

S24P6

Total Number of Contacts :

30

Number of Positions :

30

Termination :

Press-Fit

Product Status :

Active

Reliability :

COMMERCIAL

Termination Method :

Press Fit

Product Diameter (mm) :

Not Required(mm)

Connector Style :

-

Body Depth :

0.5 inch

MIL Conformance :

No

Contact Finish :

Gold

Features :

Guide Pin

Contact Finish Thickness :

30.0µin (0.76µm)

Option :

GENERAL PURPOSE

Operating Temp Range :

-20C to 105C

Contact Plating :

Gold

Operating Temperature :

-20°C ~ 105°C

Terminal Length :

0.135 inch

Termination Type :

Press Fit
