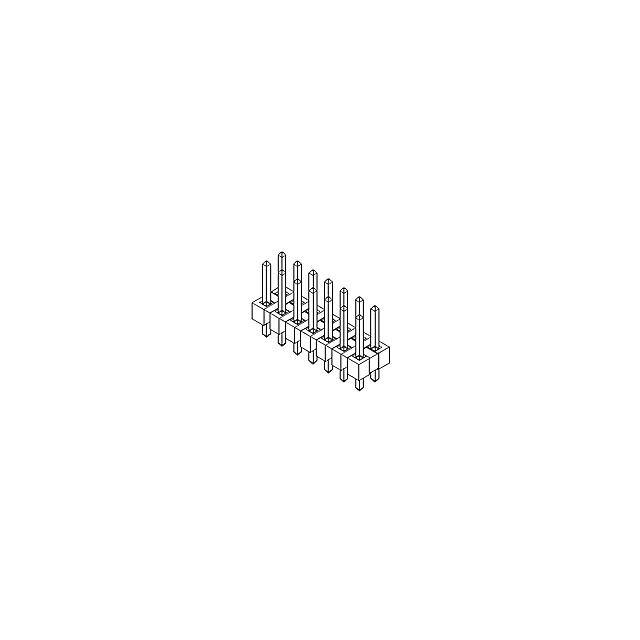

87914-0204

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Voltage Rating :

250 V

Tradename :

C-Grid

Pitch :

2.54 mm

Operating Temp Range :

-55C to 105C

Termination Method :

Solder

Product Status :

Active

Gender :

HDR

Row Spacing :

2.54 mm

Contact Material :

COPPER ALLOY

Minimum Operating Temperature :

- 55 C

Factory Lead Time :

8 Weeks

Contact Plating :

Gold Over Nickel

Mating Post Length :

6.1 mm

Current Rating (Max) :

3/Contact(A)

Series :

87914

Type :

Unshrouded Header

ECCN Code :

EAR99

Maximum Operating Temperature :

+ 105 C

Contact Type :

-

Brand :

Molex

Number of Rows :

2 Row

Product Depth (mm) :

4.98(mm)

Application :

Board-to-Board, Signal, Wire-to-Board

Termination Post Length :

2.72 mm

Packaging :

Tray

Mounting Style :

Through Hole

Housing Material :

Liquid Crystal Polymer (LCP)

Manufacturer :

Molex

Product Height (mm) :

8.39(mm)

Number of Contact Rows :

2

Number of Positions :

2 Position

Product :

Headers

Pitch (mm) :

2.54(mm)

Housing Color :

Black

Product Type :

Headers and Wire Housings

Termination Style :

Solder Pin

Subcategory :

Headers and Wire Housings

Current Rating :

3 A

Contact Gender :

Pin (Male)

Accessory Type :

-

Product Category :

Headers and Wire Housings

Reach Compliance Code :

Compliant

Flammability Rating :

UL 94 V-0

Package :

Box

Body Orientation :

Straight

RoHS :

Details

Number of Contacts :

2(POS)

Mounting Angle :

Straight

Voltage Rating Max :

250V

Product Length (mm) :

2.54(mm)
