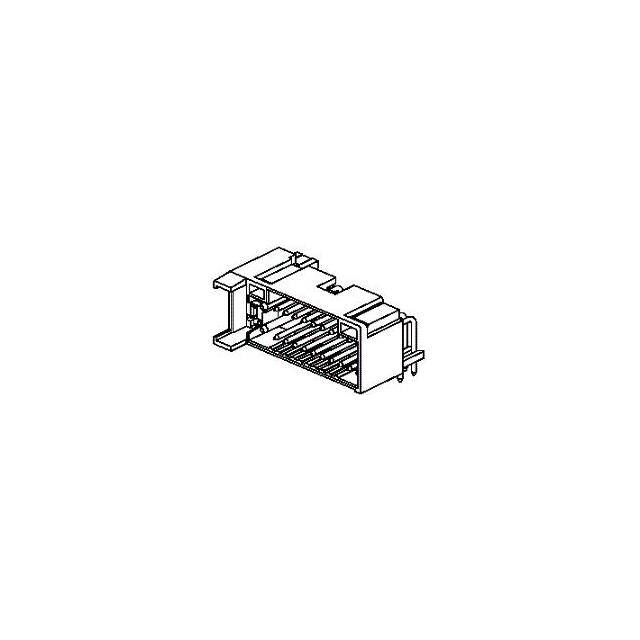

87942-7001

Manufacturer :

Molex

Product Category :

Unclassified

Mounting Style :

Through Hole

Operating Temp Range :

-40C to 105C

Body Orientation :

RIGHT ANGLE

Application :

Wire-to-Board

Connector Type :

BOARD CONNECTOR

Factory Lead Time :

8 Weeks

Current Rating :

20 A

Pitch (mm) :

3.5(mm)

Number of Contacts :

2Power/20Signal(POS)

Brand :

Molex

Voltage Rating Max :

250V

Termination Style :

Solder Pin

Contact Material :

COPPER ALLOY

Reach Compliance Code :

Compliant

Minimum Operating Temperature :

- 40 C

Series :

87942

Type :

Power

Gender :

HDR

Product Category :

Headers and Wire Housings

Product Status :

Active

Product :

Headers

RoHS :

Details

Operating Temperature Max Deg. C :

105C

Number of Positions :

22 Position

Current Rating (Max) :

(20/4)/Contact(A)

Number of Ports :

1(Port)

Subcategory :

Headers and Wire Housings

Mounting Angle :

RIGHT ANGLE

Number of Terminals :

22

Maximum Operating Temperature :

+ 105 C

Number of Rows :

2 Row

Package :

Box

Manufacturer :

Molex

Operating Temperature Min Deg. C :

-40C

Contact Plating :

Tin

Termination Method :

Solder

Housing Material :

Nylon

Voltage Rating :

250 V

Product Type :

Headers and Wire Housings

Packaging :

Bag

Tradename :

C-Grid
