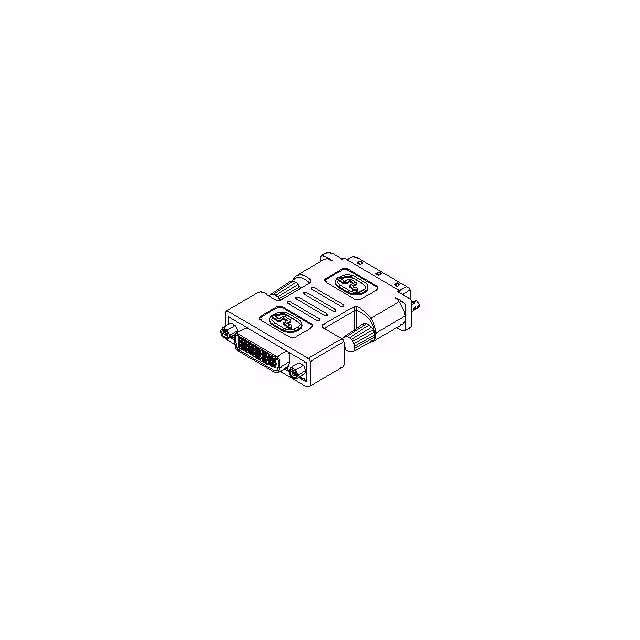

88741-9400

Manufacturer :

Molex

Product Category :

USB, DVI, HDMI Connector Adapters

Number of Contacts :

29

Number of Positions :

29

Color :

Natural

Pitch :

2.54 mm

Mounting Type :

CABLE

Operating Temperature Min Deg. C :

-20C

Number of Ports :

1(Port)

Min Operating Temperature :

-20 °C

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

RoHS :

Compliant

Orientation :

Vertical

Pbfree Code :

yes

Contact Gender :

FEMALE-MALE

Mixed Contacts :

No

Plating :

Tin

Lead Pitch :

2.54 mm

ECCN Code :

EAR99

Body Material :

Bronze, Steel

HTS Code :

8536.69.80.00

DIN Conformance :

No

Operating Temp Range :

-20C to 85C

Filter Feature :

No

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Product Status :

Active

Gender :

RCP/PL

Packaging :

Bag

Country of Origin :

HK

IEC Conformance :

No

Option :

GENERAL PURPOSE

Contact Finish Termination :

Gold Flash (Au)

Product Depth (mm) :

67(mm)

Connector Type :

DVI

Current Rating (Max) :

3/Contact(A)

Contact Material :

Phosphor Bronze

Straight Connection :

yes

Manufacturer :

Molex

Number of Circuits :

29

Max Operating Temperature :

85 °C

Housing Material :

Thermoplastic

Current Rating :

3 A

Package :

Box

Additional Feature :

MICROCROSS, EMI SHIELDED, POLARIZED

MIL Conformance :

No

Mount :

CABLE

Voltage Rating Max :

40V

Product Height (mm) :

17(mm)

Reach Compliance Code :

Unknown

Contact Plating :

Gold

Voltage Rating :

40 V

Product Length (mm) :

46(mm)

Operating Temperature Max Deg. C :

85C

Body/Shell Style :

Receptacle-Plug

Body Orientation :

Straight

Series :

*

Empty Shell :

No

Type :

MicroCross Adapter
