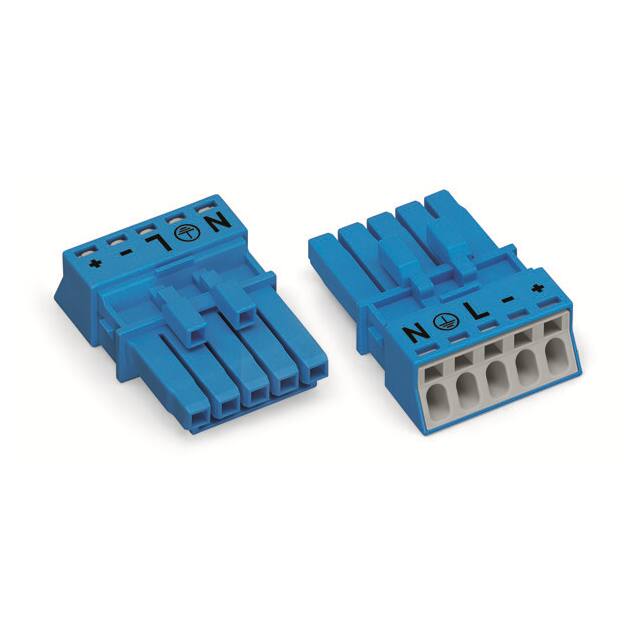

890-1105

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Manufacturer :

Wago

Height :

11.7

Contact Material :

-

Current - IEC :

16A

PPAP :

No

Positions Per Level :

5

Locking mechanism :

Separate

Color :

Blue

Features :

Locking Feature

Wire Strip Length :

9mm

Material housing :

Polyamide (PA)

Number of Levels :

1

Automotive :

No

EU RoHS :

Compliant

Termination Style :

Screwless - Push-In Spring

Model :

Bus

Mounting Type :

Free Hanging (In-Line)

With strain relief :

No

Contact Tail Length :

-

Package :

Box

Material Flammability Rating :

UL94 V-0

Rated surge voltage :

6

Housing Material :

Polyamide

Length :

34.1

Number of Ports :

5

Wire Gauge or Range - mm² :

0.25-1.5mm²

Number of Positions :

5

Voltage - IEC :

400 V

Header Orientation :

-

Ingress Protection :

IP20, IP40

Series :

WINSTA® MINI

Degree of protection (IP) :

IP20

Approvals :

UL;CCA

Type :

Plug, Female Sockets

Width :

23.6

Voltage - UL :

600 V

Torque - Screw :

-

Plug Wire Entry :

180°

Wire Gauge or Range - AWG :

16-22 AWG

Current - UL :

12 A

Screw Size :

-

Pitch :

0.173 (4.40mm)

Contact Mating Finish :

-

ECCN (US) :

EAR99

Product Status :

Active

Pollution degree :

3

Operating Temperature :

-35°C ~ 85°C

Insulation Height :

0.461 (11.70mm)

Wire Type :

Solid Wire;Stranded Wire
