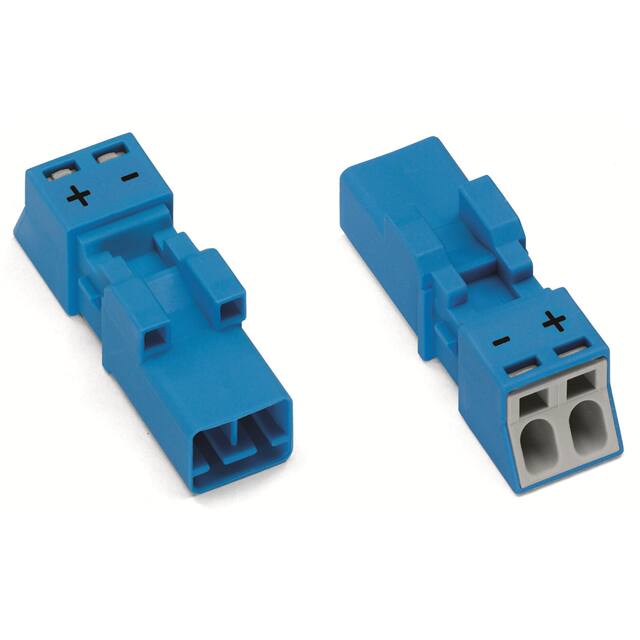

890-1112

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Mounting :

Cable Mount

Termination Style :

Screwless - Push-In Spring

Degree of protection (IP) :

IP20

Product Status :

Active

Maximum Voltage Rating :

600V

Manufacturer :

Wago

Content :

1pc(s)

REACH SVHC :

No SVHC

Plug Wire Entry :

180°

Approvals :

UL;CCA

Gender :

RCP

Connector Shell Size :

-

Nominal current (details) :

16A

Maximum Operating Temperature (°C) :

85

Header Orientation :

-

Automotive :

No

Mounting Type :

Free Hanging (In-Line)

Operating Temperature :

-35°C ~ 85°C

Insulation Height :

0.461 (11.70mm)

ECCN Code :

EAR99

Body Orientation :

Straight

Pins :

2

Nominal current :

16A

Maximum Current Rating (A) :

14

Coding :

I

Wire Type :

Solid Wire;Stranded Wire

Package :

Box

Packaging :

Box

PPAP :

No

Wire Gauge or Range - AWG :

16-22 AWG

Color :

Blue

Contact Tail Length :

-

Voltage - UL :

600 V

Current - IEC :

16A

Terminal and Terminal Block Type :

BARRIER STRIP TERMINAL BLOCK

Screw Size :

-

Product Weight (g) :

2.5

HTS Code :

8536.69.40.40

Contact Gender :

Pin

Housing Material :

Polyamide

Features :

Locking Feature

Rated surge voltage :

4

Series :

WINSTA MINI

Contact Mating Finish :

-

Material Flammability Rating :

UL94 V-0

Ingress Protection :

IP20, IP40

Height :

11.7

Manufacturer part # :

890-1112

Nominal current - rounded value :

16A

Contact Plating :

-

Length :

34.1

Reach Compliance Code :

Compliant

Material housing :

Polyamide (PA)

Number of Levels :

1

Connection :

CAGE CLAMP® S

Termination Method :

Crimp

Cable Ø range :

0.25 - 1.5 mm²

EU RoHS :

Compliant

Pollution degree :

3

Voltage - IEC :

250 V

Locking mechanism :

Separate

Torque - Screw :

-

Positions Per Level :

2

Number of Rows :

1

Width :

10.4

Wire Strip Length :

9mm

Nominal voltage (details) :

250V

Number of Pins :

2

Connector Type :

PLUG

Number of Ports :

2

Mating Cycle (Cycles) :

200

Current Rating :

16 A

Model :

PLUG

Leading contact (PE) :

No

Number of Contacts :

2

Cable Ø (max.) :

1.5mm²

Type :

Housing

ECCN (US) :

EAR99

Cable Ø up to :

0.25mm²

Cable diameter (details) :

0.25 - 1.5mm²

Total no. of pins :

2

Minimum Operating Temperature (°C) :

-35

Number of Positions :

2

Nominal voltage :

250V

AWG :

22 -16

Pitch :

0.173 (4.40mm)

Wire Gauge or Range - mm² :

0.25-1.5mm²

Current - UL :

14 A

RoHS :

Compliant

Contact Material :

COPPER ALLOY

With strain relief :

No
