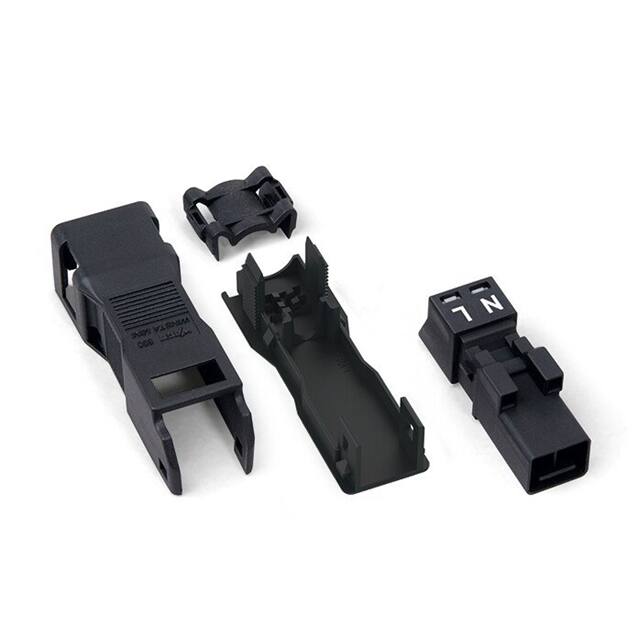

890-112

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Model :

PLUG

Number of Positions :

2

Voltage - IEC :

250 V

Current Rating :

16A

Degree of protection (IP) :

IP20

Wire Size :

22 → 16 (Solid) AWG, 22 → 18 (Stranded) AWG

Wire Strip Length :

9mm

Contact Plating :

-

Termination Method :

Push-In Cage Clamp

Positions Per Level :

2

Approvals :

UL

Features :

Strain Relief

Pollution degree :

3

Strain Relief :

yes

Current - IEC :

16A

Screw Size :

-

With strain relief :

yes

Housing Material :

Polyamide

Product Length (mm) :

61.6(mm)

Number of Ways :

2

Number of Levels :

1

Voltage Rating :

250 V

Mounting Type :

Cable Mount

Locking mechanism :

Separate

Insulation Height :

0.520 (13.20mm)

Gender :

Male

Product Status :

Active

Ingress Protection :

IP40

Product Height (mm) :

13.2(mm)

Height :

13.2

Product Depth (mm) :

15.6(mm)

Termination Style :

Screwless - Push-In Spring

Material Flammability Rating :

UL94 V-0

Operating Temp Range :

-5C TO 40C

Manufacturer :

Wago

Wire Type :

Solid Wire;Stranded Wire

Body Orientation :

Straight

Material housing :

Polyamide (PA)

Series :

890

Packaging :

Box

Current - UL :

14 A

Contact Tail Length :

-

Length :

61.6

Wire Gauge or Range - mm² :

0.25-1.5mm²

Torque - Screw :

-

Operating Temperature :

-35°C ~ 85°C

Color :

Black

Voltage - UL :

600 V

Wire Gauge or Range - AWG :

16-22 AWG

Contact Material :

COPPER ALLOY

Plug Wire Entry :

180°

Rated surge voltage :

4

Package :

Box

Header Orientation :

-

Number of Ports :

2

Contact Mating Finish :

-

Pitch :

0.173 (4.40mm)

Type :

Housing

Width :

15.6
