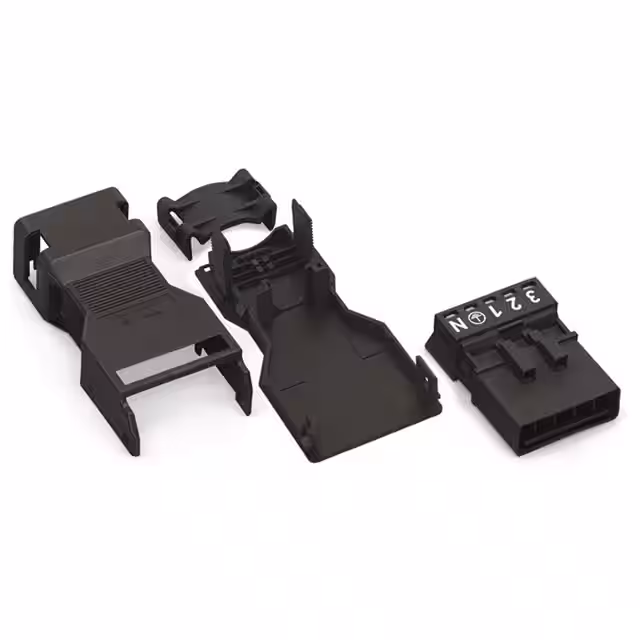

890-115

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Current - UL :

12 A

Header Orientation :

-

Voltage - UL :

600 V

Features :

Strain Relief

Screw Size :

-

Product Status :

Active

Operating Temperature :

-35°C ~ 85°C

Wire Strip Length :

9mm

Automotive :

No

HTS :

8536.69.40.40

Package :

Box

Mounting Type :

Free Hanging (In-Line)

Material Flammability Rating :

UL94 V-0

Model :

PLUG

Number of Ports :

5

Plug Wire Entry :

180°

Length :

71.9

Voltage - IEC :

400 V

Height :

15.8

Type :

Plug, Male Pins

Torque - Screw :

-

Wire Type :

Solid Wire;Stranded Wire

Rated surge voltage :

6

Wire Gauge or Range - AWG :

16-22 AWG

Degree of protection (IP) :

IP20

Width :

26.7

ECCN (US) :

EAR99

Current - IEC :

13A

Number of Levels :

1

Contact Tail Length :

-

Pitch :

0.173 (4.40mm)

Pollution degree :

3

Insulation Height :

0.622 (15.80mm)

Series :

WINSTA® MINI

Color :

Black

Ingress Protection :

IP40

Housing Material :

Polyamide

Approvals :

UL

Contact Mating Finish :

-

Locking mechanism :

Separate

Manufacturer :

Wago

PPAP :

No

Contact Material :

-

Number of Positions :

5

Termination Style :

Screwless - Push-In Spring

Wire Gauge or Range - mm² :

0.25-1.5mm²

Material housing :

Polyamide (PA)

Positions Per Level :

5

With strain relief :

yes

EU RoHS :

Compliant
