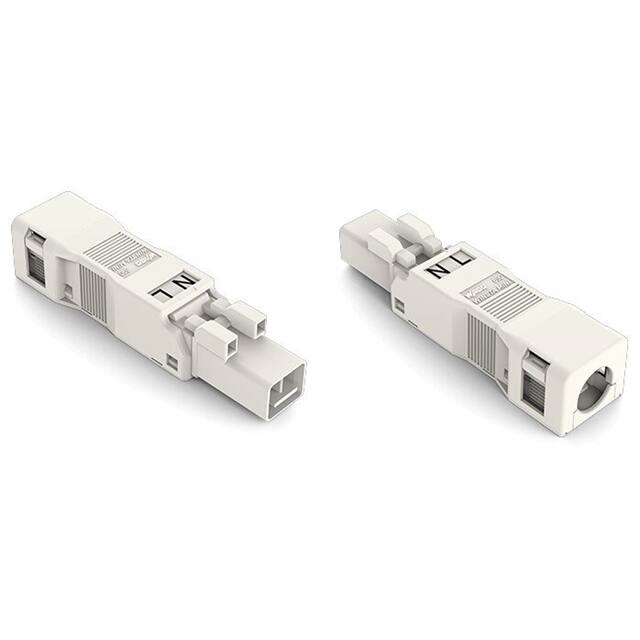

890-132

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Coding :

A

Housing Material :

Polyamide

AWG :

22 -16

Ingress Protection :

IP40

Wire Strip Length :

9mm

Nominal current (details) :

16A

Cable Ø range :

0.25 - 1.5 mm²

Termination Style :

Screwless - Push-In Spring

Leading contact (PE) :

No

Connection :

CAGE CLAMP® S

Torque - Screw :

-

Pitch :

0.173 (4.40mm)

Screw Size :

-

Series :

WINSTA MINI

Header Orientation :

-

Nominal current :

16A

Contact Tail Length :

-

Total no. of pins :

2

Package :

Box

Nominal voltage :

250V

Type :

With strain relief housing

Cable diameter (details) :

0.25 - 1.5mm²

Voltage - UL :

600 V

Current - IEC :

16A

Number of Levels :

1

Material Flammability Rating :

UL94 V-0

Pins :

2

Content :

1pc(s)

Positions Per Level :

2

Product Status :

Active

Wire Gauge or Range - mm² :

0.25-1.5mm²

Wire Type :

Solid Wire;Stranded Wire

Manufacturer part # :

890-132

Cable Ø (max.) :

1.5mm²

Number of Positions :

2

Insulation Height :

0.520 (13.20mm)

Cable Ø up to :

0.25mm²

Number of Ports :

2

Plug Wire Entry :

180°

Wire Gauge or Range - AWG :

16-22 AWG

Mounting Type :

Free Hanging (In-Line)

Nominal current - rounded value :

16A

Nominal voltage (details) :

250V

Current - UL :

14 A

Color :

White

Voltage - IEC :

250 V

Features :

Strain Relief

Contact Mating Finish :

-

Operating Temperature :

-35°C ~ 85°C

Manufacturer :

Wago

Approvals :

UL

Contact Material :

-
