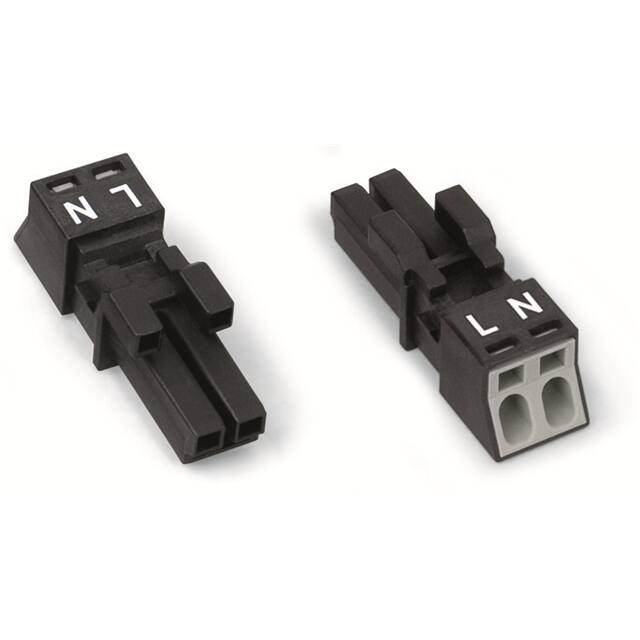

890-202

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Header Orientation :

-

Features :

Locking Feature

Type :

Without strain relief casing

Automotive :

No

Contact Mating Finish :

-

PPAP :

No

Orientation :

Straight

Voltage - UL :

600 V

Contact Material :

-

Pollution degree :

3

Screw Size :

-

Positions Per Level :

2

Approvals :

UL

Wire Type :

Solid Wire;Stranded Wire

Material Flammability Rating :

-

Ingress Protection :

IP20, IP40

Wire Gauge or Range - AWG :

16-22 AWG

Pins :

2

Total no. of pins :

2

Coding :

A

Contact Tail Length :

-

Voltage - IEC :

250 V

Degree of protection (IP) :

IP20

Pitch :

0.173 (4.40mm)

Nominal voltage :

250V

Length :

34.1

Locking mechanism :

Separate

Series :

WINSTA MINI

Number of Levels :

1

Material housing :

Polyamide (PA)

Nominal current :

16A

Rated surge voltage :

4

Content :

1pc(s)

Connector Type :

Socket

Cable Ø (max.) :

1.5mm²

Rated Voltage :

250V

RoHS :

Compliant

Current - IEC :

16A

With strain relief :

No

Cable Ø range :

0.25 - 1.5 mm²

Torque - Screw :

-

Cable diameter (details) :

0.25 - 1.5mm²

Wire Gauge or Range - mm² :

0.25-1.5mm²

Connection :

CAGE CLAMP® S

Wire Gauge (Max) :

16 AWG

Product Status :

Active

Height :

11.7

Mounting Type :

Free Hanging (In-Line)

Cable Ø up to :

0.25mm²

Wire Gauge (Min) :

22 AWG

Wire Size (AWG) :

22AWG to 16AWG

Nominal voltage (details) :

250V

ECCN (US) :

EAR99

Rated Current :

16A

Color :

Black

Lead Free :

Lead Free

Model :

Bus

Housing Material :

Polyamide

Number of Poles :

2

Termination :

Cage Clamp

Operating Temperature :

-35°C ~ 85°C

Manufacturer :

Wago

Termination Style :

Screwless - Push-In Spring

Current Rating :

16 A

Insulation Height :

0.461 (11.70mm)

Wire Strip Length :

9mm

Manufacturer part # :

890-202

Package :

Box

Nominal current (details) :

16A

Nominal current - rounded value :

16A

Number of Ports :

2

Number of Pins :

2

AWG :

22 -16

Width :

10.4

Plug Wire Entry :

180°

EU RoHS :

Compliant

Leading contact (PE) :

No

Number of Positions :

2

Current - UL :

14 A

HTS :

8536.69.40.40
