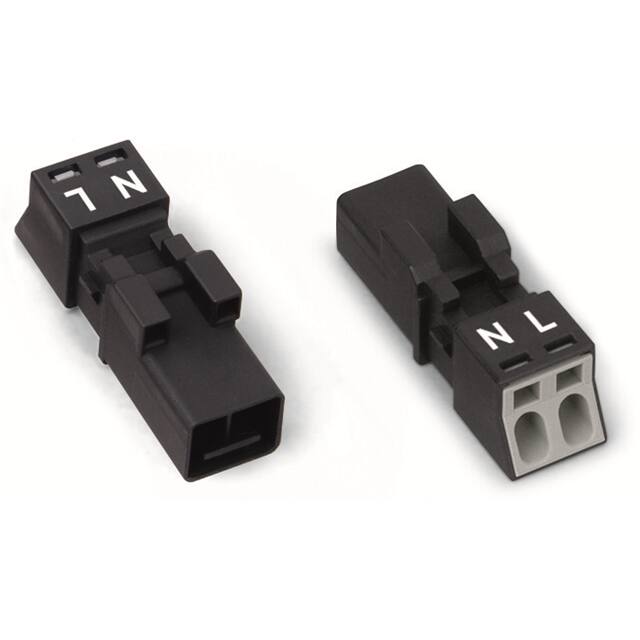

890-212

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Wire Gauge or Range - mm² :

0.25-1.5mm²

Product Status :

Active

Plug Wire Entry :

180°

Cable Ø range :

0.25 - 1.5 mm²

Number of Levels :

1

Contact Tail Length :

-

Nominal voltage (details) :

250V

Type :

Without strain relief housing

AWG :

22 -16

Features :

-

Current - UL :

14 A

Height :

11.7

Wire Strip Length :

9mm

Contact Mating Finish :

-

Color :

Black

Manufacturer part # :

890-212

Cable Ø (max.) :

1.5mm²

Coding :

A

Positions Per Level :

2

Nominal current - rounded value :

16A

Package :

Box

Approvals :

UL

Material housing :

Polyamide (PA)

Ingress Protection :

IP20, IP40

Wire Size (AWG) :

22AWG to 16AWG

Pins :

2

Number of Ports :

2

Voltage - UL :

600 V

Reach Compliance Code :

Unknown

Width :

10.4

Degree of protection (IP) :

IP20

Total no. of pins :

2

Locking mechanism :

Separate

Termination Style :

Screwless - Push-In Spring

Wire Gauge or Range - AWG :

16-22 AWG

Pollution degree :

3

Manufacturer :

Wago

Cable Ø up to :

0.25mm²

Material Flammability Rating :

-

ECCN Code :

EAR99

Mounting Type :

Free Hanging (In-Line)

Number of Positions :

2

Content :

1pc(s)

Voltage - IEC :

250 V

Wire Type :

Solid Wire;Stranded Wire

Connection :

CAGE CLAMP® S

Nominal current (details) :

16A

Rated Voltage :

250V

Nominal voltage :

250V

Rated Current :

16A

Operating Temperature :

-35°C ~ 85°C

Nominal current :

16A

Housing Material :

Polyamide

Model :

PLUG

Header Orientation :

-

Terminal and Terminal Block Type :

BARRIER STRIP TERMINAL BLOCK

HTS Code :

8536.69.40.40

Pitch :

0.173 (4.40mm)

Contact Material :

-

Leading contact (PE) :

No

Cable diameter (details) :

0.25 - 1.5mm²

Series :

WINSTA MINI

With strain relief :

No

Screw Size :

-

Torque - Screw :

-

Rated surge voltage :

4

Current - IEC :

16A

Insulation Height :

0.461 (11.70mm)

Length :

34.1
