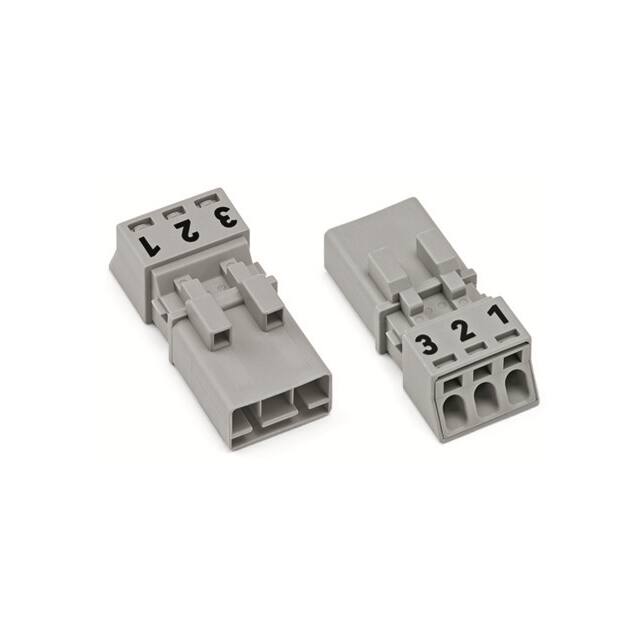

890-253

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Features :

Locking Feature

Plug Wire Entry :

180°

Material Flammability Rating :

UL94 V-0

Product Status :

Active

Number of Positions :

3

EU RoHS :

Compliant

Pitch :

0.173 (4.40mm)

Ingress Protection :

IP20, IP40

Color :

Gray

Voltage - IEC :

250 V

PPAP :

No

Contact Mating Finish :

-

Length :

34.1

Mounting Type :

Free Hanging (In-Line)

Manufacturer :

Wago

Package :

Box

Torque - Screw :

-

Pollution degree :

3

Insulation Height :

0.461 (11.70mm)

Screw Size :

-

Wire Strip Length :

9mm

Wire Gauge or Range - AWG :

16-22 AWG

Material housing :

Polyamide (PA)

Width :

15

ECCN (US) :

EAR99

Model :

PLUG

Automotive :

No

Current - IEC :

16A

Rated Voltage :

250V

Type :

Plug, Female Sockets

Operating Temperature :

-35°C ~ 85°C

Number of Ports :

3

Contact Material :

-

Series :

WINSTA® MINI

Height :

11.7

Current - UL :

14 A

Wire Gauge or Range - mm² :

0.25-1.5mm²

Wire Type :

Solid Wire;Stranded Wire

Locking mechanism :

Separate

Wire Size (AWG) :

22AWG to 16AWG

Contact Tail Length :

-

Positions Per Level :

3

Termination Style :

Screwless - Push-In Spring

Voltage - UL :

600 V

Degree of protection (IP) :

IP20

Housing Material :

Polyamide

Number of Levels :

1

With strain relief :

No

Rated surge voltage :

4

Header Orientation :

-

Rated Current :

16A
