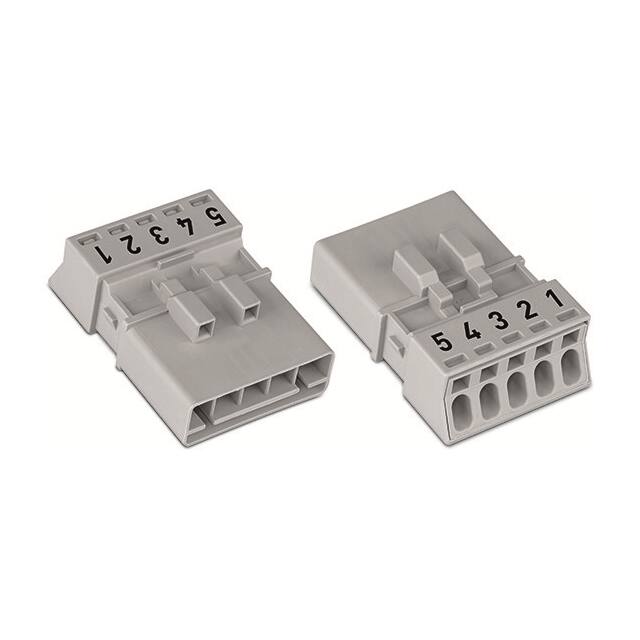

890-255

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Contact Material :

-

Features :

Locking Feature

Wire Strip Length :

9mm

Termination Style :

Screwless - Push-In Spring

With strain relief :

No

Color :

Gray

Width :

23.6

Model :

PLUG

Mounting Type :

Free Hanging (In-Line)

ECCN (US) :

EAR99

HTS :

8536.69.40.40

Voltage - UL :

600 V

Pitch :

0.173 (4.40mm)

PPAP :

No

Degree of protection (IP) :

IP20

Number of Ports :

5

Material Flammability Rating :

-

Material housing :

Polyamide (PA)

Current - IEC :

16A

Header Orientation :

-

Current - UL :

12 A

Housing Material :

Polyamide

Plug Wire Entry :

180°

EU RoHS :

Compliant

Contact Tail Length :

-

Automotive :

No

Operating Temperature :

-35°C ~ 85°C

Insulation Height :

0.461 (11.70mm)

Screw Size :

-

Packaging :

Box

Wire Gauge or Range - AWG :

16-22 AWG

Type :

Plug, Female Sockets

Wire Type :

Solid Wire;Stranded Wire

Voltage - IEC :

400 V

Torque - Screw :

-

Locking mechanism :

Separate

Height :

11.7

Contact Mating Finish :

-

Pollution degree :

3

Wire Gauge or Range - mm² :

0.25-1.5mm²

Length :

34.1

Package :

Box

Number of Levels :

1

Ingress Protection :

IP20, IP40

Number of Positions :

5

Product Status :

Active

Rated surge voltage :

6

Series :

WINSTA® MINI

Manufacturer :

Wago

Positions Per Level :

5
