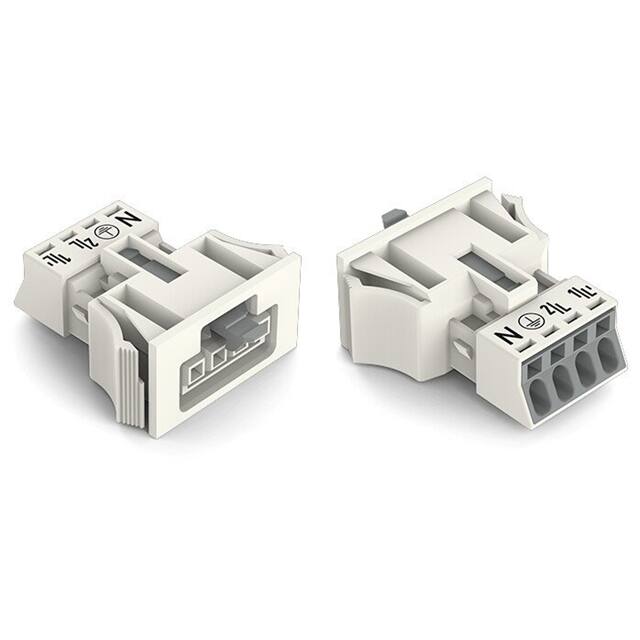

890-724

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Header Orientation :

-

Wire Gauge or Range - AWG :

16-22 AWG

Locking mechanism :

Integrated in plug-in connector

Contact Material :

-

Contact Tail Length :

-

Wire Strip Length :

9mm

Plug Wire Entry :

180°

Product Status :

Active

Features :

Lever Actuated

Termination Style :

Screwless - Push-In Spring

Rated surge voltage :

6

Current - IEC :

16A

Ingress Protection :

IP40

Mounting Type :

Panel Mount, Snap-In

Length :

39.8

Housing Material :

Polyamide

Contact Mating Finish :

-

Number of Ports :

4

Voltage - UL :

600 V

HTS :

8536.69.40.40

Color :

White

Manufacturer :

Wago

Package :

Box

Positions Per Level :

4

Model :

Bus

Number of Levels :

1

Height :

16

Width :

28.6

Voltage - IEC :

400 V

Wire Gauge or Range - mm² :

0.25-1.5mm²

Pollution degree :

3

Housing Color :

White

PPAP :

No

Approvals :

UL

Operating Temperature :

-35°C ~ 85°C

Material housing :

Polyamide (PA)

Automotive :

No

EU RoHS :

Compliant

Wire Type :

Solid Wire;Stranded Wire

Degree of protection (IP) :

IP20

Type :

Plug, Female Sockets

Torque - Screw :

-

Current - UL :

12 A

Number of Positions :

4

Pitch :

0.173 (4.40mm)

Screw Size :

-

ECCN (US) :

EAR99

Material Flammability Rating :

-

Insulation Height :

0.630 (16.00mm)

Series :

WINSTA® MINI
