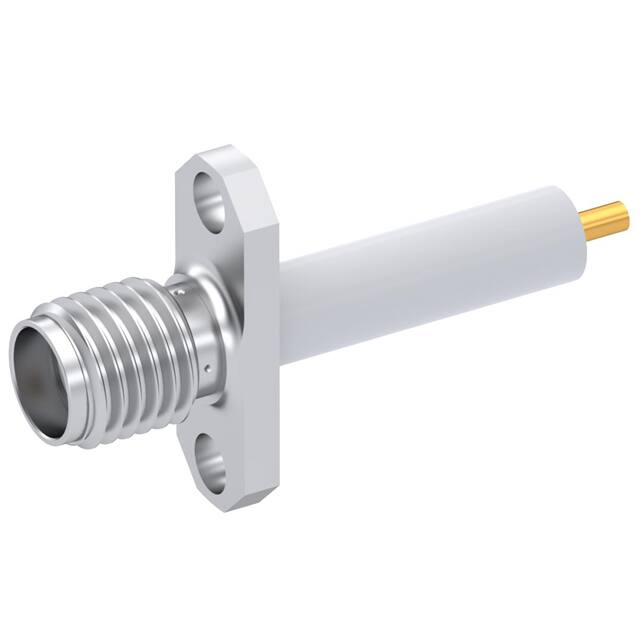

9008-9113-000
Or copy the link below:
- Mfr.Part #
- 9008-9113-000
- Manufacturer
- Radiall USA, Inc.
- Package / Case
- Datasheet
- Download
- Description
- SMA / STRAIGHT JACK RECEPTACLE F
- Stock
- 43,759
- In Stock ：
- 43,759
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Radiall USA, Inc.
- Product Category :
- Coaxial Connector (RF) Assemblies
- Contact Style :
- COAX
- RF Series :
- SMA
- Fastening Type :
- Threaded
- Product Type :
- RF Connectors / Coaxial Connectors
- DIN Conformance :
- No
- Operating Frequency-Max :
- 18 GHz
- Connector Type :
- Jack, Female Socket
- Panel Mount :
- yes
- Frequency - Max :
- 18 GHz
- Base Product Number :
- 9008-9113
- Series :
- SMA
- Manufacturer :
- Radiall
- Ingress Protection :
- -
- Body Depth :
- 0.375 inch
- Max Frequency :
- 18 GHz
- Reach Compliance Code :
- Compliant
- Body Material :
- Stainless Steel
- Mounting Option 1 :
- LOCKING
- Body Orientation :
- Straight
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Shell Material :
- Stainless Steel
- Contact Gender :
- FEMALE
- Product Status :
- Active
- Center Contact Material :
- BERYLLIUM COPPER
- Insulator Color :
- White
- Impedance :
- 50 OHM
- Connector Style :
- SMA
- Operating Temperature :
- -65 to 165 °C
- Type :
- SMA
- Body Style :
- Flange
- Mounting Style :
- Straight
- Brand :
- Radiall
- Contact Material :
- BERYLLIUM COPPER
- Body Finish :
- -
- Shield Termination :
- Solder
- Subcategory :
- RF Interconnects
- Mating Cycles :
- 500
- MIL Conformance :
- No
- Number of Ports :
- 1
- Product Category :
- RF Connectors / Coaxial Connectors
- Insertion Loss :
- -
- Center Contact Plating :
- Gold
- Total Number of Contacts :
- 1
- Packaging :
- Bulk
- Mating Information :
- No
- Terminate To :
- Coaxial Cable
- Factory Lead Time :
- 7 Weeks, 6 Days
- Package :
- Bulk
- Housing Color :
- Silver
- Filter Feature :
- No
- Body/Shell Style :
- Receptacle
- Option :
- GENERAL PURPOSE
- Product :
- Panel Receptacles
- Contact Termination :
- Solder
- Orientation :
- Straight
- Termination Type :
- Solder Lug
- RoHS :
- Details
- Contact Finish Termination :
- Gold (Au) - with Nickel (Ni) barrier
- Reliability :
- COMMERCIAL
- Mounting Feature :
- Flange
- Mounting :
- Panel Mount
- Product Length :
- 27.43 mm
- JESD-609 Code :
- e4
- Contact Plating :
- Gold
- Includes :
- -
- Features :
- Extended Insulation
- Mounting Type :
- Panel Mount, Through Hole
- Cable Group :
- -
- IEC Conformance :
- No
- Coupling Type :
- Threaded
- Characteristic Impedance :
- 50 Ω
- Gender :
- Receptacle
- Datasheets
- 9008-9113-000
Jack, Female Socket Threaded 50 Ohm Bulk SMA Solder 1 Port Polytetrafluoroethylene (PTFE) -65 to 165 °C
9008-9113-000 Overview
The packaging contains Jack, Female Socket.This device is mounted in the Panel Mount, Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the SMA Series.The device has 1 ports that can be used to manage a variety of tasks.As a result, the device runs at -65 to 165 °C Operating Temperature.This device is capable of reaching a maximum frequency of 18 GHz.
9008-9113-000 Features
SMA series
9008-9113-000 Applications
There are a lot of Radiall
9008-9113-000 Coaxial Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
