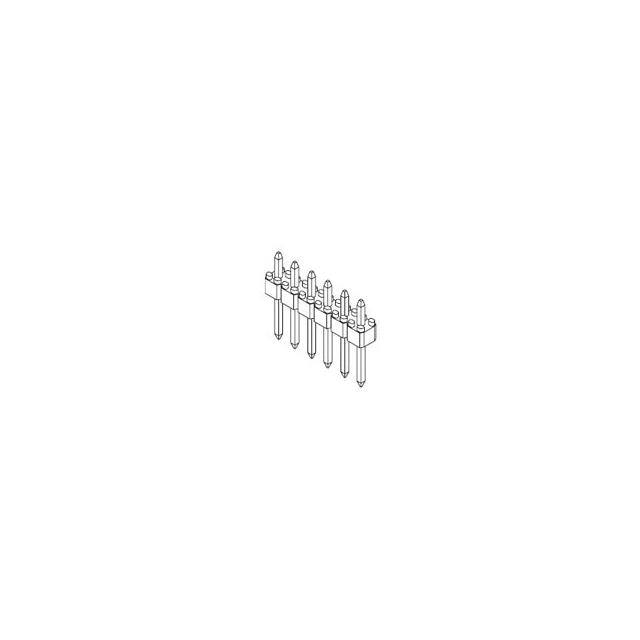

90120-0772

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Application :

Signal, Wire-to-Board

Country of Origin :

SK

Termination :

Solder

Mount :

Through Hole

Insulator Color :

Black

Terminal Length :

0.114 inch

Product :

Headers

Number of Contact Rows :

1

Number of Contacts :

12(POS)

Product Length :

30.48 mm

Product Category :

Headers and Wire Housings

Subcategory :

Headers and Wire Housings

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Series :

90120

Contact Plating :

Gold

Lead Pitch :

2.54 mm

Product Height (mm) :

9.25(mm)

Minimum Operating Temperature :

- 55 C

Lead Length :

2.9 mm

Reach Compliance Code :

Compliant

Package :

Tray

Min Operating Temperature :

-55 °C

Voltage Rating :

350 VAC/DC

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

IEC Conformance :

No

Insulation Resistance :

5 GΩ

Number of Rows :

1 Row

Plating :

Nickel

Termination Method :

Solder

Gender :

Header

Contact Pattern :

RECTANGULAR

Contact Style :

SQ PIN-SKT

Mounting Type :

Through Hole

Withdrawl Force-Min :

.1946 N

RoHS :

Details

Connector System :

Wire to Board

Termination Post Length :

2.9 mm

Max Operating Temperature :

125 °C

Contact Mating Length :

6.7564 mm

Lifecycle Status :

Production (Last Updated: 2 years ago)

Tradename :

C-Grid

DIN Conformance :

No

Option :

GENERAL PURPOSE

Contact Type :

-

Orientation :

Vertical

Plating Thickness :

15u inch

Brand :

Molex

Factory Lead Time :

13 Weeks

Operating Temp Range :

-55C to 125C

Mounting :

Through Hole

Terminal Pitch :

2.54 mm

Number Of PCB Rows :

1

Product Type :

Headers and Wire Housings

Total Number of Contacts :

12

Body/Shell Style :

Receptacle

Packaging :

Tray

Termination Type :

Solder

UL Flammability Code :

94V-0

JESD-609 Code :

e4

Material :

Glass, Polyester

Filter Feature :

No

Current Rating :

3 A

Body Orientation :

Straight

Mixed Contacts :

No

Lead Free :

Lead Free

Mating Post Length :

6.75 mm

Mounting Angle :

Straight

Housing Material :

Polyester

Voltage Rating (DC) :

350 V

Voltage Rating (AC) :

350 V

Radiation Hardening :

No

PCB Contact Pattern :

RECTANGULAR

Manufacturer :

Molex

Accessory Type :

-

Current Rating (Max) :

3/Contact(A)

REACH SVHC :

Unknown

Insertion Force-Max :

.973 N

Contact Resistance :

20 mΩ

Dielectric Withstanding Voltage :

350VDC V

Product Depth (mm) :

2.54(mm)

Product Length (mm) :

30.48(mm)

Body Breadth :

0.1 inch

HTS Code :

8536.69.40.40

Pitch (mm) :

2.54(mm)

Type :

Unshrouded Header

Termination Style :

Solder Pin

Pitch :

2.5400 mm

Housing Color :

Black

Base/Housing Material :

Polyester

ECCN Code :

EAR99

Number of Circuits :

11

MIL Conformance :

No

Number of Positions :

12 Position

Glow Wire Compliant :

Non-Compliant

Reference Standard :

UL

Contact Finish Termination :

Gold (Au)

Operating Temperature :

-55 to 125 °C

Contact Material :

Brass

Mounting Style :

Through Hole

Working Voltage :

350 V

Contact Gender :

Pin (Male)

Voltage Rating Max :

350VDC/350VAC

Reliability :

COMMERCIAL

Contact Resistance Max :

20(mohm)

Maximum Operating Temperature :

+ 125 C

Color :

Black

Connector Type :

Male Pin

Mating Contact Pitch :

0.1 inch

Product Status :

Active

Flammability Rating :

UL 94 V-0

Number of Poles :

12

Max Voltage Rating (DC) :

350.35 kV

Additional Feature :

C-GRID III

Rated Current (Signal) :

3 A

Body Depth :

0.098 inch

Pbfree Code :

yes
